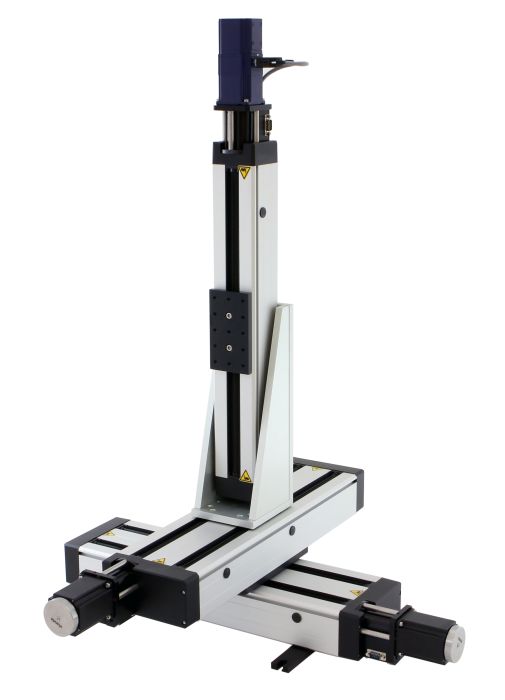

Specifications Travel range* 240...2840mm Lead screw pitch 2.5/4/5/10mm Resolution in full step** 12,5µm Resolution in 1/8 step** 1,57µm Max. speed** 40mm/s on request we fit alternative motors Load capacity: Horizontal 60kg Vertical 10kg Motor connector DB9(M) Stepper motor 8MT295X 5918 8MT295Z 5918-B Recommended controllers 8SMC5-USB Mechanical end limit switches 2 Switch polarity pushed is open
|
◆Long travel ◆High resolution ◆Motors of other types are available ⊙ Ordering Information Model Travel range Lead screw pitch 8MT295X-340-2.5 340mm 2.5mm 8MT295X-540-4 540mm 4mm 8MT295X-740-5 740mm 5mm 8MT295X-840-10 840mm 10mm 8MT295Z-340-2.5 340mm 2.5mm 8MT295Z-540-4 540mm 4mm 8MT295Z-740-5 740mm 5mm 8MT295Z-840-10 840mm 10mm 8MT295(Z)-custom from 240up to 2840 any of2.5 , 4 ,5 , 10
|
