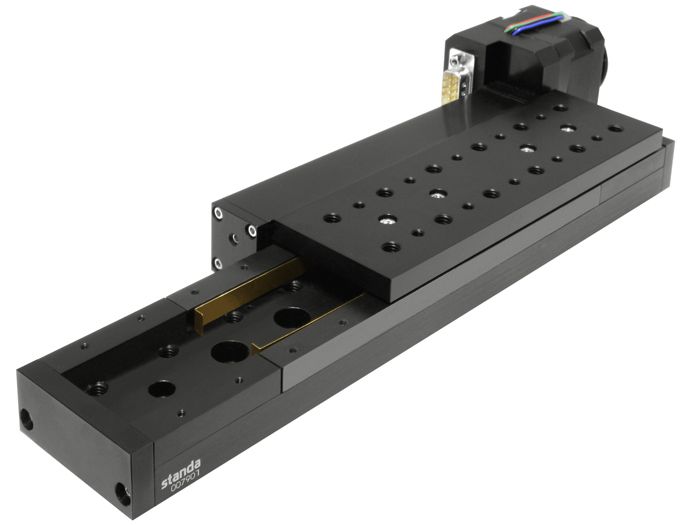

Motorized Stag

Narrow

Compact design

Resolution 0,125µm (1/8 step)

XYZ motorized stage configuration available

Motors of other types are available

Vacuum version available

Printable version

​View drawings​

Download 3D​

 Specifications

Travel range : 100 mm

Lead screw pitch : 0.5 mm

Resolution in full step  : 1 μm

              in 1/8 step : 0.125 μm

Reduction motor/screw 2.5:1

Max. speed*  : 5 mm/s

Load capacity

  Horizontal :  8 kg

  Vertical : 3 kg

Motor connector : DB9(M)

Stepper motor :  4247

Weight 1.5 kg

Assemblies: X-Y(directly) , Z(2AB175)

Recommended controller 8SMC5-USB

Mechanical end limit switches :   2

Switch polarity :   pushed is closed
