Specifications

Travel range  100 mm

Lead screw pitch  0.5 mm

Resoliution in full step  2.5 um

Resoliution in 1/8 step  0.31 um

Max.speed*   10 mm/s

on request we fit alternative motors

Load capacity

 Horizontal  8 kg

 Vertical  3 kg

Motor connector  DB9(M)

Motor  4247

Recommended controllers  8SMC5-USB

Weight  1,3 kg

Mechanical end limit switches  2

 Switch polarity  pushed is closed​

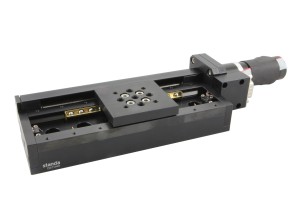

● Motorized Linear Stage

●​ Motors of other types are available

●​ Vacuum version available​
