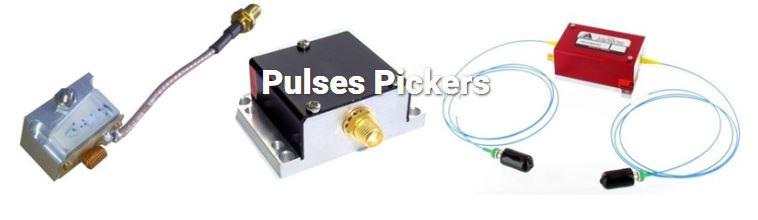

Pulses Pickers

펄스 선택기는 고속 펄스 트레인에서 단일 펄스를 추출하는 데 사용 특정 펄스만을 전송하고 다른 펄스를 모두 차단하는 것이 필요함

목록

A pulse picker is an electrically controlled optical switch used to extract single pulses from a fast pulse train. Short and Ultrashort pulses are in most cases generated by a mode-locked laser in the form of a pulse train with a pulse repetition rate of the order of 10 MHz – few GHz. For various reasons, it is often necessary to pick certain pulses from such a pulse train, i.e., to transmit only certain pulses and block all the others. This can be done with a pulse picker, which is essentially an electrically controlled optical gate.



TeO2 General purpose Pulse Pickers
Model Wavelength nm Aperture mmxmm Polarisation Beam diameter mm Rise Time ns Max Repetition rate with Duty cycle < 1/10 MHz Separation angle (0-1) mrd Efficiency % Associated RF drivers
MT200-A0.5-800 700-950 0.5 x 1 Linear 0.06 - 0.3 10 - 48 3.3 - 0.69 38 @800nm 75 - 85 MODAxx
PPKxx
MT200-A0.2-1064 980-1100 0.2 x 1 Linear 0.09 - 0.3 15 - 48 2.2 - 0.69 50.6 @1064nm 75 - 85 MODAxx
PPKxx
MT250-A0.12-800 700-950 0.12 x 1 Linear 0.04 - 0.1 6 - 16 5.5 - 2 47.6 @800nm 70 - 85 MODAxx
PPKxx
MT250-A0.12-1030.1064 1030-1064 0.12 x 1 Linear 0.05 - 0.1 8 - 16 4.1 - 2 63.3 @1064nm 70 - 85 MODAxx
PPKxx



SiO2 High Damage Threshold Pulse Pickers
Model Wavelength nm Aperture mmxmm Polarisation Beam diameter mm Rise Time ns Max Repetition rate with Duty cycle < 1/10 MHz Separation angle (0-1) mrd Efficiency % Associated RF drivers
MT200-A0.5-800 700-950 0.5 x 1 Linear 0.06 - 0.3 10 - 48 3.3 - 0.69 38 @800nm 75 - 85 MODAxx
PPKxx
MT200-A0.2-1064 980-1100 0.2 x 1 Linear 0.09 - 0.3 15 - 48 2.2 - 0.69 50.6 @1064nm 75 - 85 MODAxx
PPKxx
MT250-A0.12-800 700-950 0.12 x 1 Linear 0.04 - 0.1 6 - 16 5.5 - 2 47.6 @800nm 70 - 85 MODAxx
PPKxx
MT250-A0.12-1030.1064 1030-1064 0.12 x 1 Linear 0.05 - 0.1 8 - 16 4.1 - 2 63.3 @1064nm 70 - 85 MODAxx
PPKxx



Fiber Pulses Pickers

Model Wavelength(nm)* Fiber Type Configuration** Frequency Shift (MHz)*** Rise Time (ns) Max Laser Power (W) Insertion Losses (nom dB) Associated RF driver
MT200-IR10-Fio-10PLM-J1-A-Ic2 1030-1064 PLMA10 2 Ports 200 10 1 2.5 MODAxx
PPKxx
MT200-IR10-Fio-PM-J1-A-Ic 1030-1064 PM 2 Ports 200 10 1 2.5 MODAxx
PPKxx
MT250-IR6-Fio-PM0,5-J1-A-Ic 1030-1064 PM 2 Ports 250 6 0.5 3.5 MODAxx
PPKxx
MT160-IIR10-Fio-xx 1250-1650 SM, PM 2 Ports 160 10 0.5 or 1 5 MODAxx
PPKxx
MT80-FIR40-Fio-xx 1850-2100 SM, PM 2 Ports 80 <40 0.5 or 5 4 MODAxx
PPKxx
