AA propose a line of Acousto-optic Q-switches and associated RF drivers, for a wide range of applications. They are manufactured from the highest quality materials, with optimized hard coatings for high damage threshold and long term operation. All AA Q-switches are designed so as to optimize heat dissipation and beam stability with a unique glueing and mechanical technology which reduces stress during operation.
Air-cooled Q-Switches
Compact solutions for short cavities, or low gain cavities.
- RF drivers for Q-Switches
A complete range of Q-switches drivers from 24 MHz up to 110MHz, with RF power up to 200 Watts.
Different sizes and models with a wide choice of control signals in order to shape your pulses.
| Model |
Carrier Frequency MHz |
Max RF Power W |
Rise Fall/ Time ns |
Controls |
Exctinction Ratio dB |
Security Measurement |
Power Supply |
Class |

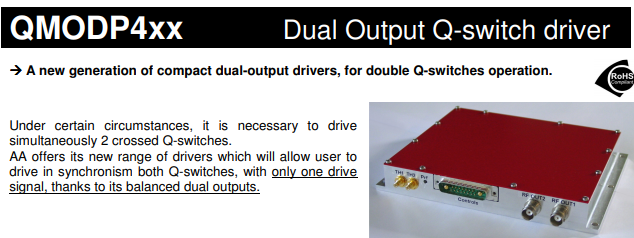

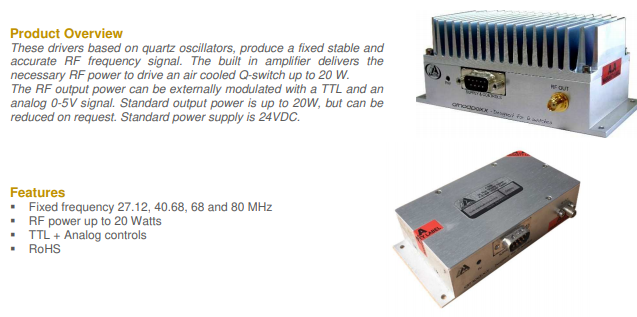

| QMODP0xx - Reliable Basic Solution up to 20 Watts |
27.12 40.68 68 80 |
10 20 |
< 20 |
TTL + FAC (0-5V) |
45 |
NO |
24 VDC 2.3-2.9 A |
A |
| QMODP1xx- Compact Solution 20, 30, 70 Watts |
27.12 40.68 68 80 |
20 30 70 |
< 30 < 30 < 50 |
TTL (R) + FAC (0-5V) |
45 |
Output Power Return Power Thermal (QST + Driver) |
15 VDC |
A |
| QMODP2Axx - Ultra Compact Solution 5, 10, 20 Watts |
27.12 40.68 68 80 |
5 10 20 |
< 10 < 20 < 30 |
TTL |
40 |
NO |
24 VDC 3-6 A |
A |
| QMODP3xx - High power solution 100-120 Watts |
27.12 40.68 |
120 |
< 50 |
TTL (R) + FAC (0-5V) |
45 |
Output Power Return Power Thermal (QST + Driver) |
24 VDC 12 A |
A |
| QMODP4xx - DUAL OUTPUTS solution (2 synchronized outputs) |
27.12 40.68 68 80 |
2 x 30 2 x 60 |
< 50 |
TTL (R) + FAC (0-5V) |
45 |
Output Power Return Power Thermal (QST + Driver) |
24 VDC 6-12 A |
A |
| QMODP1xx-F |
27.12 40.68 80 |
200 |
< 70 |
TTL (R) + FAC (0-5V) |
45 |
Output Power Return Power Thermal (QST + Driver) |
48 VDC 8A |
A |
