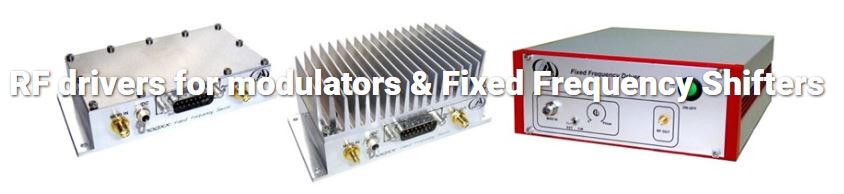

RF drivers for modulators & Fixed Frequency Shifters

고정 RF 주파수 신호를 생성합니다. 10 ~ 3GHz의 주파수로 드라이버를 제공 할 수 있습니다. 안정화 시간은 고정 주파수 및 RF 전력에 따라 2ns에서 100ns

목록

These drivers based on quartz oscillators, produce a fixed RF frequency signal. Drivers can be provided at any frequency from 10 to 3 GHz. All models use crystal controlled oscillators. The RF output can be externally modulated (AM). The settling time varies from 2 ns to 100 ns depending on the fixed frequency and RF power. Usually the driver is coupled internally to a power amplifier; if the output power required is very high then the amplifier will be provided separately, offering RF powers up to 500 W CW.



Model Carrier Frequency Max RF Power Rise Fall/Time Video In Exctinction Ratio Power Supply Class
MODA40-1W/2W 40 MHz 1 or 2 W /50 Ω < 20 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA40-50W/70W 40 MHz 50 or 70 W / 50 Ω < 50 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA80-1W/2W 80 MHz 1 or 2 W /50 Ω < 10 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA80-4W/10W 80 MHz 4 or 10 W /50 Ω < 10 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA110-1W/2W 110 MHz 1 or 2 W /50 Ω < 8 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA110-4W/10W 110 MHz 4 or 10 W /50 Ω < 8 ns 0-5 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA180-1W/2W 180 MHz 1 or 2 W /50 Ω < 5 ns 0-1 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA180-4W/10W 180 MHz 4 or 10 W /50 Ω < 5 ns 0-1 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA200-1W/2W 200 MHz 1 or 2 W /50 Ω < 3 ns 0-1 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA250-1W/2W 250 MHz 1 or 2 W /50 Ω < 3 ns 0-1 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A
MODA350-1W/2W 350 MHz 1 or 2 W /50 Ω < 3 ns 0-1 V / 50 Ω* 45dB 24 VDC or 110/230 VAC A

Driver with low electrical consumption

Model Carrier Frequency Max RF Power Rise Fall/Time Video In Exctinction Ratio Power Supply
MODA80-Axx 80MHz 1.4W 10ns 0-5V 45dB 12VDC/0.45A
MODA110-Axx 110MHz 1.6W 8ns 0-5V 45dB 12VDC/0.55A
MODA200-Axx 200MHz 1.4W 3ns 0-1V 45dB 12VDC/0.51A
