Modulator & Frequency shifters
PPK: Synchro drivers for pulse pickers
  • PPK: Synchro drivers for pulse pickers
제조사 AA OPTO-ELECTRONIC
PPK: Synchro drivers for pulse pickers

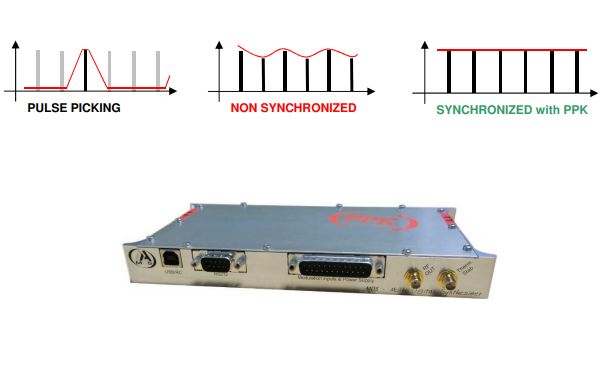

Plug and play synchronization_high speed Pulse Picking application

목록

Synchro drivers for Fibre pigtailed pulse pickers

Model Laser Repetition rate Carrier frequency RF power Delay Range Pulse width range AO Models
PPKAc250-B-34-32-75,85 75-85MHz 250 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT250-IR6-Fio-PM-Ic
PPKS250-B-34-32 30-65MHz 250 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT250-IR6-Fio-PM-Ic
PPKS200-B-34-32 30-55MHz 200 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT200-IR10-Fio-PM-Ic
PPKS200-B-34-128 5-55MHz 200 MHz 2W 128ns (1ns) 128ns (1ns) MT200-IR10-Fio-PM-Ic
PPKS200-B-34-640 1-50MHz 200 MHz 2W 640ns (5ns) 640ns (5ns) MT200-IR10-Fio-PM-Ic
PPKS80-B-34-640 1-20MHz 80 MHz 2W 640ns (5ns) 640ns (5ns) MT80-IR30-Fio-PM-Ic2 / MT80-FIR40-Fio-PM



Synchro drivers for Free space pulse pickers

Model Laser Repetition rate Carrier frequency RF power Delay Range Pulse width range AO Models
PPKAc250-B-34-32-75,85 75-85MHz 250 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT250-A0,12-1064
PPKS250-B-34-32 0.1-65MHz 250 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT250-A0,12-1064
PPKS200-B-34-32 0.1-65MHz 200 MHz 2W 32ns (0,25ns) 32ns (0,25ns) MT200-A0,4-1064
PPKS200-B-34-128 0.1-65MHz 200 MHz 2W 128ns (1ns) 128ns (1ns) MT200-A0,4-1064
PPKS200-B-34-640 0.1-65MHz 200 MHz 2W 640ns (5ns) 640ns (5ns) MT200-A0,4-1064
PPKS80-B-34-640 0.1-65MHz 80 MHz 2W 640ns (5ns) 640ns (5ns) MT80-A1-1064 / MT80-A0.4-2000
PPKS80-B-42-640 0.1-65MHz 80 MHz 15W 640ns (5ns) 640ns (5ns) MQ80-A0,7-L1030,1080
