MPDS – Multi Purposes Digital Synthesizers

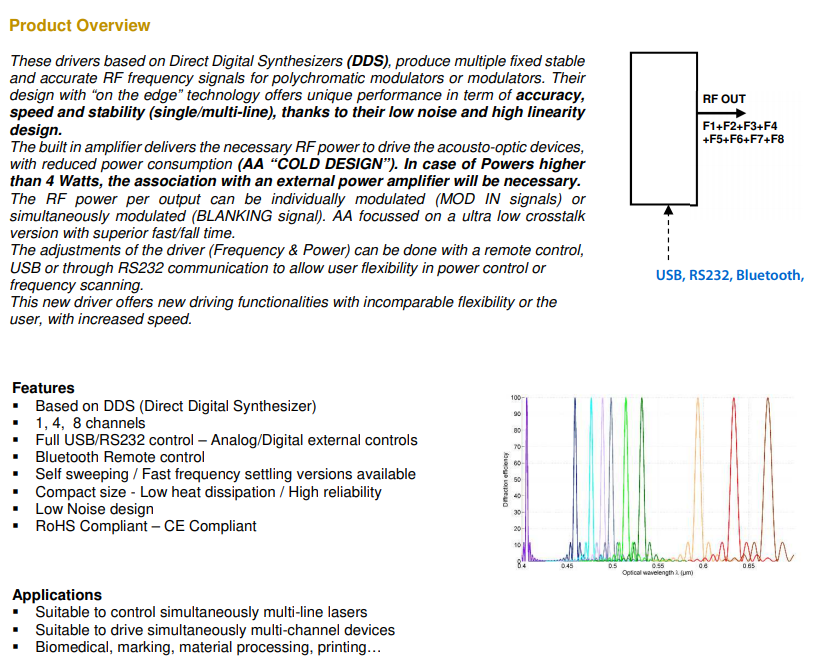

These drivers based on Direct Digital Synthesizers (DDS), produce multiple fixed stable and accurate RF frequency signals for polychromatic modulators or modulators.

MPDS – Multi Purposes Digital Synthesizers

The MPDSnC driver, based on DDS (Direct Digital Synthesizer), has been specially designed in order to exploit the best of the AOTFnC features. It offers up to 8 single channels mixed in one output.

Its compact design with single power supply, low RF emissions and ease of use will satisfy the most demanding of applications, where accuracy and flexibility are key requirements. Thanks to its complete digital design and integrated microcontroller setting up is fast, simple and repeatable. Access to and adjustments of functions is simple with either an Android tablet (with remote control adjustment) or through a RS232 serial link (with computer control) or USB communication.

All parameters are stored in an EEPROM and are automatically loaded after each switch on. Each line is externally controlled by a distinct modulation input signal which can be digital or analog. Additionally, all lines can be simultaneously controlled by a blanking signal which produces smooth effects without modifying the colorimetric balance. The combination of the modulation input and blanking signals provides the best extinction ratio performance (> 100 dB).



Data Sheet   MPDSnC, 1, 4, 8 channels, USB, RS232, Bluetooth

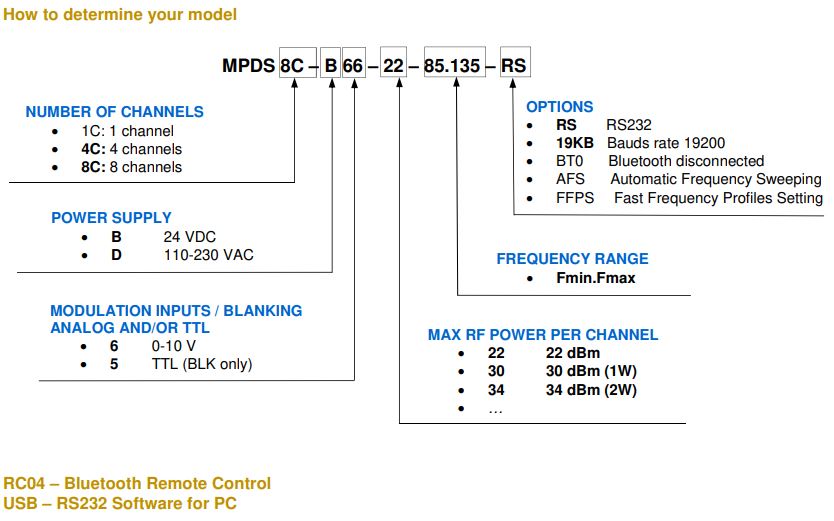

Model MPDSnC driver, 1, 4 or 8 channels
Number of channels 1, 4, 8
Frequency range Will be adapted to AO up to 200 MHz
Frequency stability +/- 2 ppm / °C
Frequency accuracy < 1 KHz
Frequency step Nom 1 KHz
Frequency control Remote Control or USB, Option : RS232
Rise/Fall Time (10-90%) < 50 ns
Modulation Input Control Analog 0-5 V / 10 kOhms or Analog 0-10 V / kOhms
Blanking input Control Analog 0-5 V or Analog 0-10 V / kOhms (option TTL)
Power Supply OEM version : 24 VDC - nom 0,85 A Laboratory version : 110/230 VAC - 50Hz60 Hz
Extinction ratio @ 125 MHz MOD IN > 80dB typ 90 dB BLK > 70 dB typ 80 dB MOD IN + BLK > 90 dB typ 100 dB
Output RF power 22 dBm per channel [up to 36 dBm]
Output Impedance 50 ohms
V.S.W.R. Nom < 1,5/1
Input/Output connectors DB25 / SMA (DB9 for RS232)
Size OEM version: MDS (207 x 127 x 26,1 mm3), MPDS (154 x 92 x 26.1mm3) Laboratory version: Rack 19’’, 1U
Weight OEM version: <1 kg Laboratory version: nom 4 kg
Heat exchange OEM version: Conduction Laboratory version: standalone
Operating temperature 10 to 40 °C



USB/RS232 software for MPDS/MDS
