제조사 Molex Polymicro Technology

TSG High-Temperature Polyimide Coating WWP* Square-Square Polyimide Coating

Material Number	Product Description	Material	Inner Diameter(μm)	Outer Diameter(μm)	Coating Thickness (μm)
106815-0030	TSG250350	TSG High-Temperature Polyimide Coating	250 ± 6	350 ± 15	20
106815-0031	TSG320450		320 ± 6	435 ± 15	18
106815-0032	TSG530660		536 ± 6	673 ± 25	30
106816-0099	TSP050794	TSP 1/32”Standard Polyimide Coating	50 ± 3	794 ± 12	24
106815-0065	TSP075794		75 ± 3	794 ± 12	24
106815-0066	TSP100794		100 ± 4	794 ± 12	24
106815-0067	TSP200794		200 ± 6	794 ± 12	24
106815-0068	TSP250794		250 ± 6	794 ± 12	24
106815-0069	TSP300794		300 ± 6	794 ± 12	24
106815-0070	TSP400794		400 ± 6	794 ± 12	24
106815-0071	TSP500794		500 ± 6	794 ± 12	24
106815-1815	TSP150665	TSP Thick WallStandard Polyimide Coating	150 ± 6	665 ± 15	24
106815-1816	TSP200665		200 ± 6	665 ± 15	24
106815-1817	TSP250665		250 ± 6	665 ± 15	24
106815-1818	TSP300665		300 ± 6	665 ± 15	24

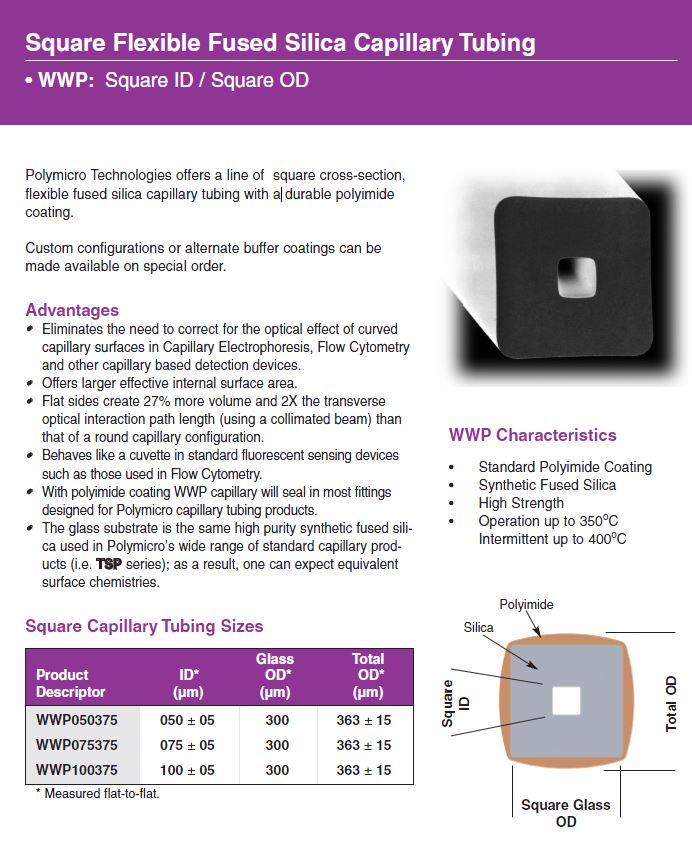

106815-1513	WWP050375	WWP* Square-Square Polyimide Coating	50 ± 5	363 ± 15	N/A**
106815-1514	WWP075375		75 ± 5	363 ± 15	N/A**
106815-1515	WWP100375		100 ± 5	363 ± 15	N/A**
