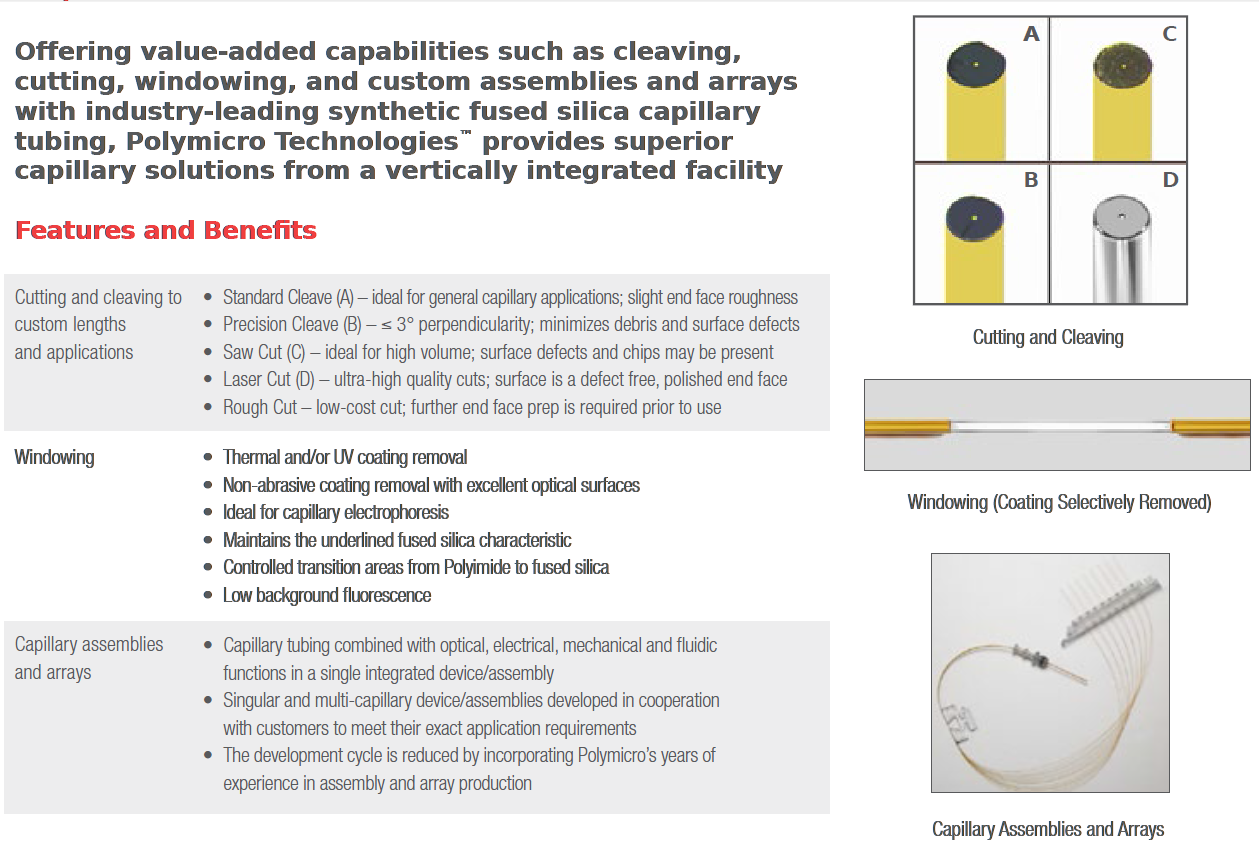

Polymicro Technologies™  Capillary Capability Offerings

Cutting & Cleaving

Windowing

Capillary Assemblies & Arrays

Standard Cleave (for routine use)

Thermal Removal

Single Capillary

Precision Cleave (£ 3° ⊥ end face cleave)

UV Removal

Multiple Capillary

Saw Cut (high volume)

Thermal & UV Removal combined

Integrates Capillary and other components

Laser Cut (defect free)

Excellent transmission into the Deep-UV

Simple to Complex devices/assemblies

Rough Cut (further end prep may be required)

Reduced Background Fluorescence

Finished OEM testing and Packaging

Capability Description

Method

Min. Overall Length (mm)

Max. Overall Length (cm)

End Face Quality (1 being the best)

End Face Angle

(1 being the smallest)

Cleanliness

(1 being the cleanest)

Cutting and Cleaving

Standard

20

To Be Quoted

3

4

3

25*

2

1

2

Saw

0.5

4.5

4

3

4

Laser

7

200

1

2

1

Capability Description

Methods

Min. Window Length (mm)

Max. Window Length (mm)

Windowing

Thermal or Ultra-Violet

2

To Be Quoted

Capability Description

Methods

Min. Overall Length (m)

Max. Overall Length (m)

Min. Capillary Quantity

Max. Capillary Quantity

Capillary Assemblies and Arrays

Simple Single, Complex Multiple Combination Capillary, and Fiber

To Be Quoted

100

1

384

Material Number

Product Description

Taper ID Minimum

Taper ID Maximum

Outside Diameter

Nominal Length

Package Size

106845-0059

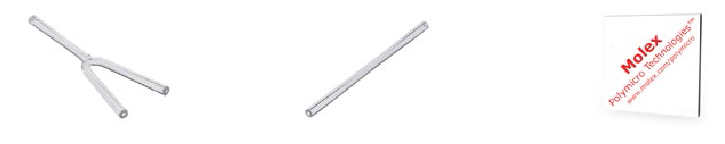

Inner-Lok™ GC Y Union

200μm

300μm

1800 +0/-20μm

38mm

10

106845-0099

Inner-Lok™ GC Union 5-pack

5

Material Number

Product  Description


Material

Dimensions

Package Size

106868-0064

Cleaving Stone

Molex – Polymicro Technologies

Ceramic Tile

1” x 1” x 1/32”

Individual
