Wavelength
|
Standard camera: 355 to 1150 nm
1350 nm capable: 355 to 1350 nm
UV capable: 190 to 1150 nm
|
|
Pixel Count‚ H x V
|
3.1 Mpixel‚ 2048 x 1536
|
|
Image Area
|
6.5 x 4.9 mm
|
|
Pixel Dimension
|
3.2 x 3.2 µm
|
|
Min. Beam (10 pixels)
|
~32 µm
|
|
Shutter Type
|
Rolling
|
|
Max. Full Frame Rate
|
~10 Hz
|
|
Max. 'Every Pulse' PRR
|
N/A
|
|
Single Pulse Capture PRR
|
~20 kHz
|
|
Signal to RMS Noise
|
1‚000:1
|
|
(Opt./Elec.* dB)
|
(30/60* dB)
|
|
Dynamic Range
|
43 dB
|
|
Electronic Shutter + ND + SNR
|
113** dB (2.10¹¹:1)
|
|
ADC
|
10-bit (1‚024 levels)
|
|
Measurable Sources
|
CW beams
Software configurable Auto-trigger‚ Synchronous & Variable Delay
|
|
Measured Beam Powers
|

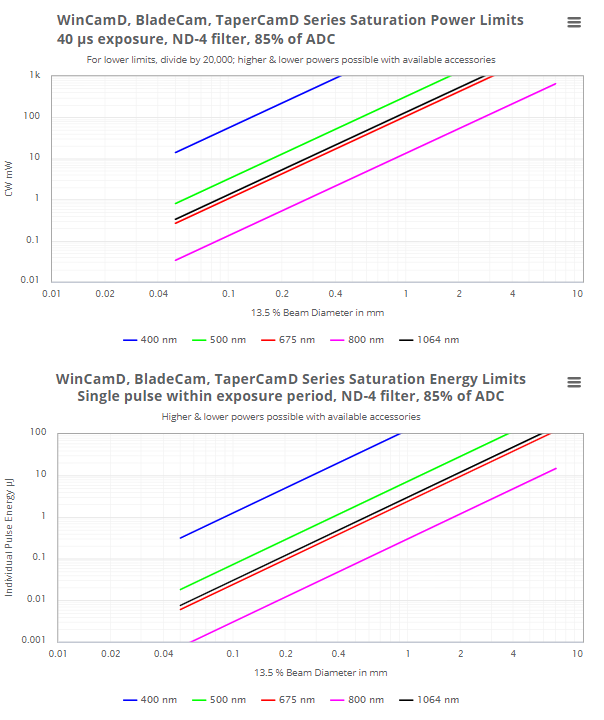

See the Saturation Power Graph‚ page 5 of the datasheet
|
|
Electronic Dynamic Range
|
CW: 44 dB (25‚000:1) electronic shutter
|
|
Manual Beam Attenuation
|
Provided ND-1‚ ND-2‚ ND-4 C-mount Neutral Density filters
|
|

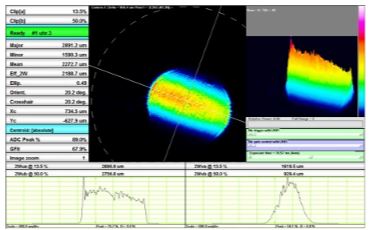

Displayed Profiles
|
Line‚ 2D & 3D plots. Normalized or un-normalized.
Linear or Logarithmic‚ Zoom x10
2D‚ 3D in 10‚ 32 or max. colors or grayscale
Contoured display at 10 and 32 colors
|
|
Measured & Displayed Profile Parameters
|
Raw and smoothed profiles
Triangular running average filter up to 10% FWHM
|
|
Beam Diameter
|
Diameter at two user set Clip levels
Gaussian & ISO 11146 Second Moment beam diameters
Equivalent diameter above a user defined Clip level
Equivalent Slit and Knife Edge diameters
|
|
Beam Fits
|
Gaussian & Top Hat profile fit & % fit
Equivalent Slit profile
|
|
Beam Ellipticity
|
Major‚ Minor & Mean diameters. Auto-orientation of axes.
|
|
Centroid Position
|
Relative and absolute
Intensity Weighted Centroid and Geometric Center
Beam Wander Display and Statistics
|
|
Measurement Accuracy (not limited to pixel size)
|
0.1 µm processing resolution for interpolated diameters.
Absolute accuracy is beam profile dependent - ~1 µm accuracy is frequently achievable.
Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level).
|
|
Processing Options
|
Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous.
Background Capture and Subtraction.
User set rectangular Capture Block for capture
User set or Auto ellipse Inclusion region with beam tracking for processing
*.ojf files save all WinCamD custom settings for particular test configurations
|
|
Update Rates
|
~5 Hz maximum for full frame‚ full screen. Higher for small Capture Blocks
|
|
Pass/Fail display
|
On-screen selectable Pass/Fail colors. Ideal for QA & Production.
|
|
Log Data and Statistics
|
Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples
|
|
Relative Power Measurement
|
Rolling histogram based on user's initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input)
|
|
Fluence
|
Fluence‚ within user defined area
|
|
Certification
|
RoHS‚ WEEE‚ CE
|
|
Multiple Cameras
|
Up to 4 cameras, parallel capture.
1 to 8 cameras, serial capture.
|
|

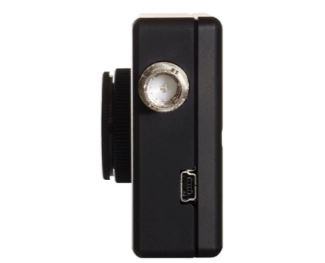

Head Dimensions‚ Width x Height x Depth
|
67 x 61 x 29 mm (2.65 x 2.4 x 1.13") with 5 mm ND filter holder
|
|
Sensor plane distance (chip depth from front of case ±0.2mm)
|
9.4 mm (verify before purchasing)
|
|
Mounting
|
1/4"-20 holes aligned with sensor center. 4-40 holes on camera rear.
|
|
Weight‚ Camera Head
|
155 g (5.5 oz)
|
|
Minimum PC Requirements
|
Windows, 2 GB RAM, USB 2.0/3.0 port
|
