제조사 CVI Melles Griot
WinCamD-THz – 1" CMOS THz Beam Profiler S-WCD-THz

Compact, Affordable, High-resolution 3 to 20 THz Multispectral Imaging

Compact, Affordable, High-resolution 3 to 20 THz Multispectral Imaging

Port-powered USB 3.0

Features

  • 3 to 20 THz (15 to 100 µm) plus 350 to 1150 nm

  • 2048 x 2048 pixels, 11.3 x 11.3 mm active area

  • 5.5 µm pixels

  • 12 fps @ 2048x2048 to 60 fps @ 512x512

  • Port-powered, USB 3.0; flexible 3 m cable

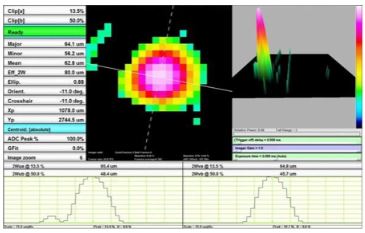

  • HyperCal™ – Dynamic noise and baseline correction software

  • Real-time non-linearity correction

  • Global electronic shutter, 85 µs to 2 s

  • TTL, optical and auto-trigger options

  • 12-bit ADC

  • Parallel capture on multiple cameras

  • Field-replaceable image sensors

  • Relative power level display

Applications

  • THz laser profiling/alignment

  • Non-linear spectroscopy

  • Medical & security inspection/QA of opaque objects

  • Field servicing of THz lasers & laser-based systems

PLEASE NOTE: This product requires 64-bit Windows 7, 8/8.1, or 10

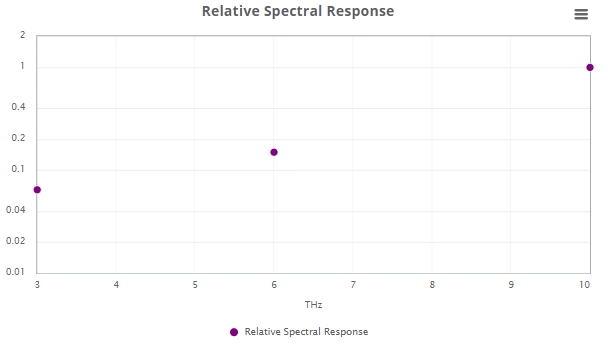

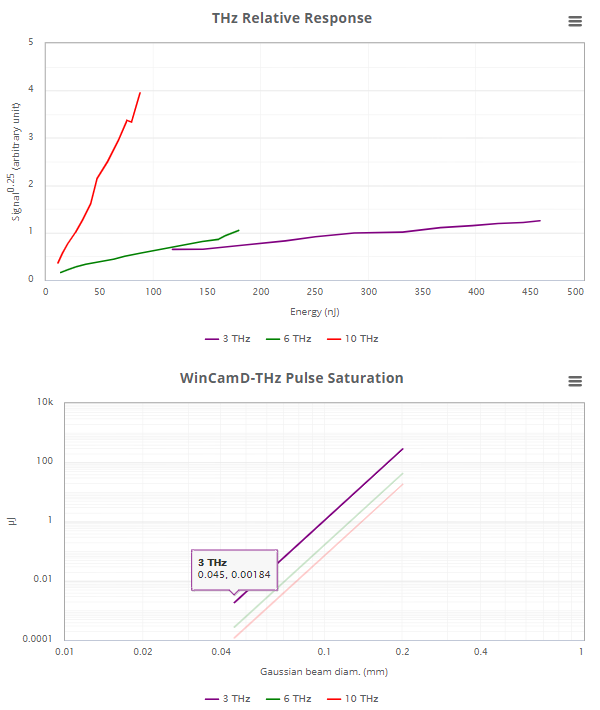

Specification Detail
Pixel size‚ H x V, count 5.5 x 5.5 µm pixels, 2048 x 2048, 4.2 MPixel
Sensor image area 11.3 x 11.3 mm
Shutter type Global
Frame rate ≥60 Hz @ 512 x 512; ≥30 Hz @ 1024 x 1024; ≥ 12 Hz @ 2048 x 2048
Max "every pulse" PRR ≥12.5 Hz
Single pulse capture max PRR USB 3.0: 12.6 kHz
USB 2.0: 6.3 kHz
Signal to RMS noise >500:1
Electronic shutter 25,000:1, 85 µs to 2s on USB 3.0
12,500:1, 158 µs to 2s on USB 2.0
ADC 12 bit
Interface USB 3.0 Port-powered

Product specifications are subject to change without notice



eDrawings EASM

STEP 3D Model

Adobe PDF

Document Type
Current Products: Beam Profiling Cameras
WinCamD-THz datasheet PDF

Product Firmware Version Software Version Date Posted Release Notes
WinCamD-THz 9 * 8.0C70  2019-02-26 Major release:DataRay v8 includes OpenGL-based graphics processing to enable faster update rates, plus updated ISO 11146 calculations
* Note: This software version will automatically upgrade your camera from FW 5, 6, 7, or 8, to FW 9.
