BladeCam-HR – ½

½

Single Pulse Capture PRR : ~20 kHz

½" CMOS Beam Profiler System, 190 to 1610* nm

Port-powered USB 2.0

Features

  • 355 to 1150 nm, standard CMOS detector
  • 1.3 Mpixel‚ 1280 x 1024 pixels, 6.6 x 5.3 mm active area
  • 5.2 µm pixels
  • HyperCal™ – Dynamic Noise and Baseline Correction software
  • Port-powered USB 2.0; flexible 3 m cable, no power brick
  • 10-bit ADC, 4 MB image buffer & on-board microprocessor
  • Window-free sensors standard for no fringing
  • 25,000:1 electronic auto-shutter, 40 µs to 1000 ms
  • 1,000:1 SNR (30/60 dB Optical/Electrical)
  • Field-replaceable image sensors
  • M² option – beam propagation analysis, divergence, focus

Applications

  • CW** laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

* model-dependent

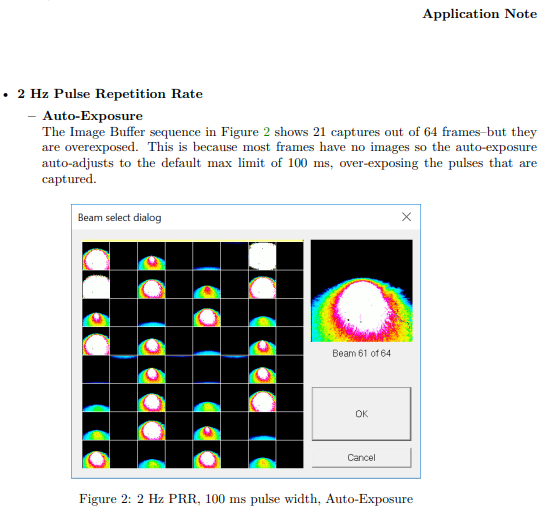

** refer to CMOS Rolling Shutter with Pulsed Lasers Application Note

Specification Detail
Wavelength Standard camera: 355 to 1150 nm
1350 nm capable: 355 to 1350 nm

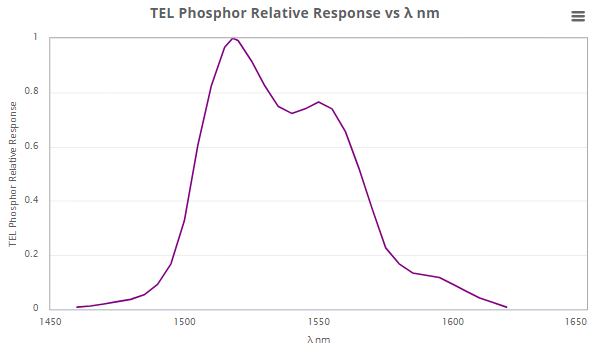

NIR capable: 1480 to 1605 nm
UV capable: 190 to 1150 nm
Pixel Count‚ H x V 1.3 Mpixel‚ 1280 x 1024
Image Area 6.6 x 5.3 mm
Pixel Dimension 5.2 x 5.2 µm
Min. Beam (10 pixels) ~52 µm
Shutter Type Rolling
Max. Full Frame Rate ~10 Hz
Max. 'Every Pulse' PRR N/A
Single Pulse Capture PRR ~20 kHz
Signal to RMS Noise 1‚000:1
(Opt./Elec.* dB) (30/60* dB)
Dynamic Range 43 dB
Electronic Shutter + ND + SNR 113** dB (2.10¹¹:1)
ADC 10-bit (1‚024 levels)
Measurable Sources CW beams
Software configurable Auto-trigger‚ Synchronous & Variable Delay

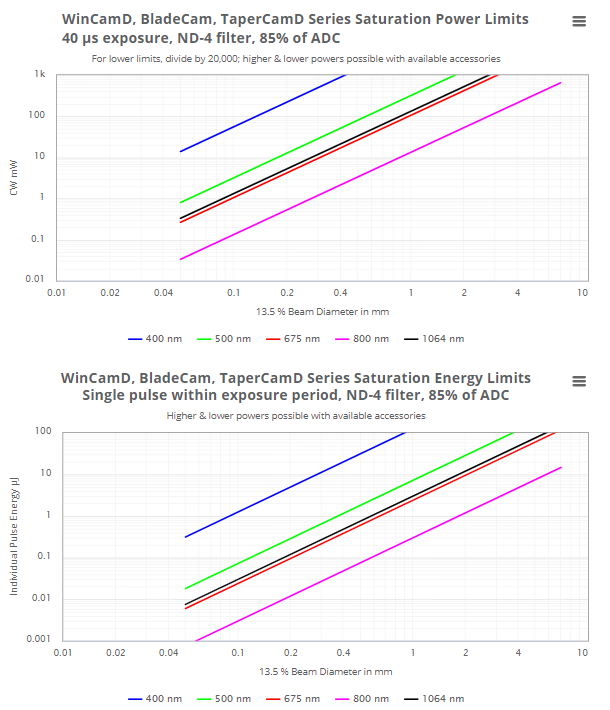

Measured Beam Powers See the Saturation Power Graph‚ page 5 of the datasheet
Electronic Dynamic Range CW: 44 dB (25‚000:1) electronic shutter
Manual Beam Attenuation Provided ND-1‚ ND-2‚ ND-4 C-mount Neutral Density filters

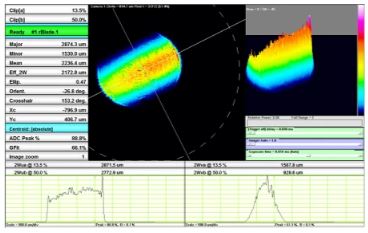

Displayed Profiles Line‚ 2D & 3D plots. Normalized or un-normalized.
Linear or Logarithmic‚ Zoom x10
2D‚ 3D in 10‚ 32 or max. colors or grayscale
Contoured display at 10 and 32 colors
Measured & Displayed Profile Parameters Raw and smoothed profiles
Triangular running average filter up to 10% FWHM
Beam Diameter Diameter at two user set Clip levels
Gaussian & ISO 11146 Second Moment beam diameters
Equivalent diameter above a user defined Clip level
Equivalent Slit and Knife Edge diameters
Beam Fits Gaussian & Top Hat profile fit & % fit
Equivalent Slit profile
Beam Ellipticity Major‚ Minor & Mean diameters. Auto-orientation of axes.
Centroid Position Relative and absolute
Intensity Weighted Centroid and Geometric Center
Beam Wander Display and Statistics
Measurement Accuracy (not limited to pixel size) 0.1 µm processing resolution for interpolated diameters.
Absolute accuracy is beam profile dependent - ~1 µm accuracy is frequently achievable.
Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level).
Processing Options Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous.
Background Capture and Subtraction.
User set rectangular Capture Block for capture
User set or Auto ellipse Inclusion region with beam tracking for processing
*.ojf files save all WinCamD custom settings for particular test configurations
Update Rates ~5 Hz maximum for full frame‚ full screen. Higher for small Capture Blocks
Pass/Fail display On-screen selectable Pass/Fail colors. Ideal for QA & Production.
Log Data and Statistics Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples
Relative Power Measurement Rolling histogram based on user's initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input)
Fluence Fluence‚ within user defined area
Certification RoHS‚ WEEE‚ CE
Multiple Cameras Up to 4 cameras, parallel capture.
1 to 8 cameras, serial capture.
Head Dimensions‚ Width x Height x Depth 46 x 46 x 16.5 mm (1.8 x 1.8 x 0.65") with 5 mm ND filter holder
Optical depth from housing/filter to sensor (no window) ±0.2 mm 4.0/ 8.5 mm (verify before purchasing)
Mounting 1/4"-20 holes aligned with sensor center. 4-40 holes on camera rear.
Weight‚ Camera Head 85 g (3 oz)
Minimum PC Requirements Windows, 2 GB RAM, USB 2.0/3.0 port

Product specifications are subject to change without notice
