| Wavelength |
Standard camera: 355 to 1150 nm
1350 nm capable: 355 to 1350 nm
UV capable: 190 to 1150 nm |
| Pixel Count‚ H x V |
3.1 Mpixel‚ 2048 x 1536 |
| Image Area |
6.5 x 4.9 mm |
| Pixel Dimension |
3.2 x 3.2 µm |
| Min. Beam (10 pixels) |
~32 µm |
| Shutter Type |
Rolling |
| Max. Full Frame Rate |
~10 Hz |
| Max. 'Every Pulse' PRR |
N/A |
| Single Pulse Capture PRR |
~20 kHz |
| Signal to RMS Noise |
1‚000:1 |
| (Opt./Elec.* dB) |
(30/60* dB) |
| Dynamic Range |
43 dB |
| Electronic Shutter + ND + SNR |
113** dB (2.10¹¹:1) |
| ADC |
10-bit (1‚024 levels) |
| Measurable Sources |
CW beams
Software configurable Auto-trigger‚ Synchronous & Variable Delay |
| Measured Beam Powers |

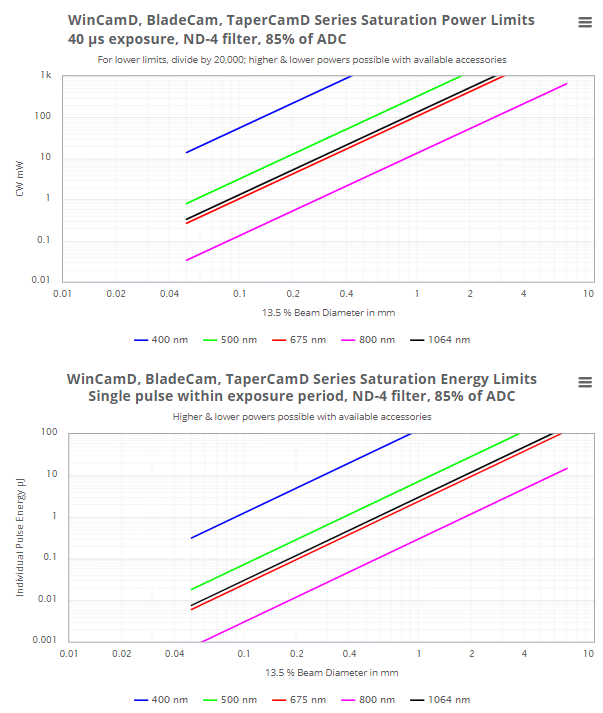

See the Saturation Power Graph‚ page 5 of the datasheet |
| Electronic Dynamic Range |
CW: 44 dB (25‚000:1) electronic shutter |
| Manual Beam Attenuation |
Provided ND-1‚ ND-2‚ ND-4 C-mount Neutral Density filters |

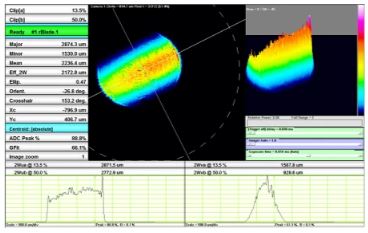

| Displayed Profiles |
Line‚ 2D & 3D plots. Normalized or un-normalized.
Linear or Logarithmic‚ Zoom x10
2D‚ 3D in 10‚ 32 or max. colors or grayscale
Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters |
Raw and smoothed profiles
Triangular running average filter up to 10% FWHM |
| Beam Diameter |
Diameter at two user set Clip levels
Gaussian & ISO 11146 Second Moment beam diameters
Equivalent diameter above a user defined Clip level
Equivalent Slit and Knife Edge diameters |
| Beam Fits |
Gaussian & Top Hat profile fit & % fit
Equivalent Slit profile |
| Beam Ellipticity |
Major‚ Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position |
Relative and absolute
Intensity Weighted Centroid and Geometric Center
Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) |
0.1 µm processing resolution for interpolated diameters.
Absolute accuracy is beam profile dependent - ~1 µm accuracy is frequently achievable.
Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options |
Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous.
Background Capture and Subtraction.
User set rectangular Capture Block for capture
User set or Auto ellipse Inclusion region with beam tracking for processing
*.ojf files save all WinCamD custom settings for particular test configurations |
| Update Rates |
~5 Hz maximum for full frame‚ full screen. Higher for small Capture Blocks |
| Pass/Fail display |
On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics |
Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples |
| Relative Power Measurement |
Rolling histogram based on user's initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input) |
| Fluence |
Fluence‚ within user defined area |
| Certification |
RoHS‚ WEEE‚ CE |
| Multiple Cameras |
Up to 4 cameras, parallel capture.
1 to 8 cameras, serial capture. |
| Head Dimensions‚ Width x Height x Depth |
46 x 46 x 16.5 mm (1.8 x 1.8 x 0.65") with 5 mm ND filter holder |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm |
4.0/ 8.5 mm (verify before purchasing) |
| Mounting |
1/4"-20 holes aligned with sensor center. 4-40 holes on camera rear. |
| Weight‚ Camera Head |
85 g (3 oz) |
| Minimum PC Requirements |
Windows, 2 GB RAM, USB 2.0/3.0 port |
