| Wavelength |
355 to 1150 nm |
| Pixel Count‚ H x V |
4.2 MPixel‚ 2048 x 2048 |
| Image Area |
25 x 25 mm |
| Pixel Dimension |
12.5 x 12.5 µm effective |
| Min. Beam (10 pixels) |
~125 µm |
| Shutter Type |
Global |
| Max Frame Rate* |
60 Hz |
| Single Pulse Capture PRR |
USB 2.0: 6.3 kHz
USB 3.0: 12.6 kHz |
| Signal to RMS Noise |
2,500:1 (34 dB optical / 68 dB electrical) |
| Electronic Shutter Range |
USB 2.0: 12,600:1 (41 dB)
USB 3.0: 25,000:1 (44 dB) |
| ADC |
12-bit |
| Measurable Sources |
CW beams‚ pulsed sources; CW to 12.6 kHz with single pulse isolation
Software configurable Auto-trigger‚ Synchronous & Variable Delay |

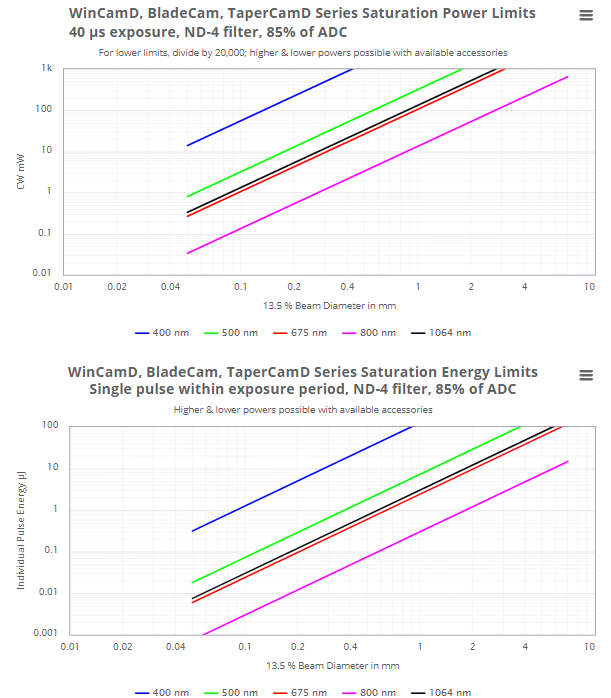

| Measured Beam Powers |
See Charts |
| Manual Beam Attenuation |
Included 2" NDXL-1‚ NDXL-2‚ NDXL-4 Neutral Density filters. Other OD values available. |
| Displayed Profiles |
Line‚ 2D & 3D plots. Normalized or un-normalized.
Linear or Logarithmic‚ Zoom x10
2D‚ 3D in 10‚ 32 or max. colors or grayscale
Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters |
Raw and smoothed profiles
Triangular running average filter up to 10% FWHM |
| Beam Diameter |
Diameter at two user set Clip levels
Gaussian & ISO 11146 Second Moment beam diameters
Equivalent diameter above a user defined Clip level
Equivalent Slit and Knife Edge diameters |
| Beam Fits |
Gaussian & Top Hat profile fit & % fit
Equivalent Slit profile |
| Beam Ellipticity |
Major‚ Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position |
Relative and absolute
Intensity Weighted Centroid and Geometric Center
Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) |
0.1 µm processing resolution for interpolated diameters.
Absolute accuracy is beam profile dependent - ~1 µm accuracy is frequently achievable.
Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options |
Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous.
Background Capture and Subtraction.
User set rectangular Capture Block for capture
User set or Auto ellipse Inclusion region with beam tracking for processing
*.ojf files save all WinCamD custom settings for particular test configurations |
| Pass/Fail display |
On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics |
Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples |
| Relative Power Measurement |
Rolling histogram based on user's initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input) |
| Fluence |
Fluence‚ within user defined area |
| Certification |
RoHS‚ WEEE‚ CE |
| Multiple Cameras |
Up to 4 cameras, parallel capture.
1 to 8 cameras, serial capture. |
| Head Dimensions‚ Width x Height x Depth |
2.25 x 2.25 x 2.13” (57 x 57 x 54 mm) |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm |
TBA mm (TBA mm with NDXL filter) |
| Mounting |
1/4-20 thread |
| Weight‚ Camera w/ NDXL and filter cover |
TBA oz (TBA g) |
