BeamMap2 – XYZΘΦ Scanning Slit Beam Profiler    S-BMS2-4XY-Si-250
  • BeamMap2 – XYZΘΦ Scanning Slit Beam Profiler    S-BMS2-4XY-Si-250
  • BeamMap2 – XYZΘΦ Scanning Slit Beam Profiler    S-BMS2-4XY-Si-250
제조사 Dtat Ray
BeamMap2 – XYZΘΦ Scanning Slit Beam Profiler S-BMS2-4XY-Si-250

Multiple Z-plane XYZΘΦ Scanning Slit System, 190 to 2500nm USB 2.0

Multiple Z-plane XYZΘΦ Scanning Slit System, 190 to 2500* nm

Port-powered USB 2.0

Features

  • 190 to 1150 nm, Silicon detector
  • 650 to 1800 nm, InGaAs detector
  • 1000 to 2300 or 2500 nm, InGaAs (extended) detector
  • Multiple plane spacing options available – please review this worksheet to identify the correct plane spacing for your application
  • Beam diameters 5 µm to 4 mm, to 2 µm in Knife Edge mode*
  • Port-powered USB 2.0; flexible 3 m cable; no power brick
  • 0.1 µm sampling and resolution
  • Linear & log X-Y profiles, centroid
  • Profile zoom & slit width compensation
  • Real-time multiple Z plane scanning slit system
  • Real-time XYZ profiles, Focus position
  • Real-time M², Divergence, Collimation, Alignment

Applications

  • Laser printing & marking
  • Medical lasers
  • Diode laser systems
  • Fiber optic telcom assembly focusing – LensPlate2™ option for re-imaging waveguides and fiber ends
  • Development, production, field service
  • CW; Pulsed lasers, Φ µm ≥ [500/(PRR in kHz)]
  • M² measurement with available M2DU stage

* model-dependent

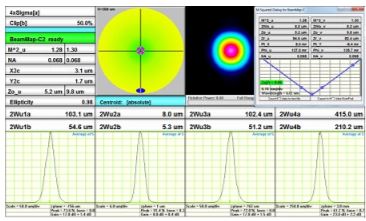

BeamMap graphic



Specification Detail
Wavelength Si detector: 190 to 1150 nm
InGaAs detector: 650 to 1800 nm
Si + InGaAs detectors: 190 to 1800 nm
Si + InGaAs (extended) detectors: 190 to 2300 or 2500 nm
Scanned Beam Diameters Si detector: 5 µm to 4 mm, to 2 µm in Knife-Edge mode*
InGaAs detector: 10 µm to 3 mm, to 2 µm in Knife-Edge mode*
InGaAs (extended) detector: 10 µm to 2 mm, to 2 µm in Knife-Edge mode*
Plane Spacing (4XY models) 100 µm: -100, 0, +100, +400 µm
250 µm: -250, 0, +250, +1000 µm
500 µm: -500, 0, +500, +2000 µm
750 µm: -750, 0, +750, +3000 µm
Plane Spacing (3XYKE models) 50 µm: -50, 0, +50, 0 µm
100 µm: -100, 0, +100, 0 µm
Beam Waist Diameter Measurement Second moment (4s) diameter to ISO 11146; Fitted Gaussian & TopHat
1/e² (13.5%) width
User selectable % of peak
Knife-Edge mode* for very small beams
Beam Waist Position Measurement ± 20 µm best in X, Y, and Z — contact DataRay for recommendation
Measured Sources CW; Pulsed lasers, F µm = [500/(PRR in kHz)]
Resolution Accuracy 0.1 µm or 0.05% of scan range
± < 2% ± = 0.5 µm
M² Measurement 1 to > 20, ± 5%
Divergence/Collimation, Pointing 1 mrad best — contact DataRay for recommendation
Maximum Power & Irradiance 1 W Total & 0.5 mW/µm²
Gain Range 1,000:1 Switched 4,096:1 ADC range
Displayed Graphics X-Y-Z Position & Profiles, Zoom x1 to x16
Update Rate ~5 Hz
Pass/Fail Display On-screen selectable Pass/Fail colors. Ideal for QA & Production.
Averaging User selectable running average (1 to 8 samples)
Statistics Min., Max., Mean, Standard Deviation
Log data over extended periods
XY Profile & Centroid Beam Wander display and logging
Minimum PC Requirements Windows, 2 GB RAM, USB 2.0/3.0 port

* Knife-Edge mode requires 3XYKE model

Product specifications are subject to change without notice

eDrawings EASM

STEP 3D Model

Adobe PDF



Document Type
General
Product Selection Guide PDF
Beam Profiling At-a-Glance PDF
White Papers
Real-time Profiling for Focusing, M², Divergence & Alignment PDF
Software
Software Features PDF
Interfacing DataRay to C++ in Visual Studio 2010 PDF
Interfacing DataRay to VB in Visual Studio 2010 PDF
Interfacing DataRay to LabVIEW PDF
Interfacing DataRay to Python PDF
Interfacing DataRay to MATLAB PDF
OCX Documentation PDF
Button ID Index PDF
Profile ID Index PDF
Current Products: BeamMap2/Beam'R2
Scanning Slit Beam Profiler Manual PDF
BeamMap2/Beam'R2 Datasheet PDF
BeamMap2 Plane Spacing Selection Worksheet Excel
LensPlate2 PDF
BeamMap2/Beam'R2 Pulsed Laser Procedure PDF
Gaussian Beam Divergence Measurement PDF
Application Notes
Gaussian Beam Divergence Measurement Worksheet Excel



Product Firmware Version Software Version Date Posted Release Notes
BeamMap2 4 7.1H25Bk  2015-03-17
BeamMap2 3 7.1H24Zy  2015-03-17 Please Contact us for a free firmware upgrade
BeamMap2 2 7.1H22U  2015-03-17 Final software version for SN 6231 and lower
