Large Beam Profiling System – 200 mm Product ID: LBPS-TS-200-LCM
  • Large Beam Profiling System – 200 mm Product ID: LBPS-TS-200-LCM
  • Large Beam Profiling System – 200 mm Product ID: LBPS-TS-200-LCM
제조사 Dtat Ray
Large Beam Profiling System – 200 mm Product ID: LBPS-TS-200-LCM

Analysis of beams to 200 mm image area

Analysis of beams to 200 mm image area

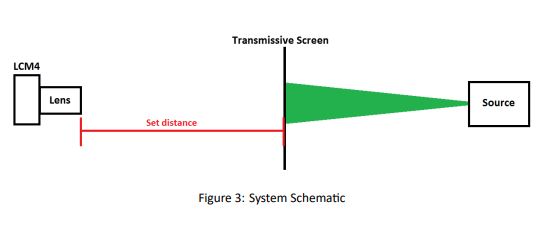

Large beam laser profiling system for beams to 200 mm image area. Includes WinCamD-LCM CMOS Beam Profiler, imaging lens, and transmissive screen assembly.

  • 355 to 1150 nm
  • Image plane (sensor): 4.2 MPixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area
  • 5.5 μm pixel size
  • Reimaging Lens: 12.5 mm focal length, f/1.4-f/16
  • Transmissive screen: 200 x 200 mm
  • 170 μm effective pixel size
Document Type
Current Products: Specialized Beam Profiler Systems
Large Beam Profiling System Flyer PDF
Application Notes
Large Beam Profiling System - Transmissive Screen App. Note PDF
