7R128 - Micro Rotation Stage
  • 7R128 - Micro Rotation Stage
제조사 STANDA Ltd
7R128 - Micro Rotation Stage

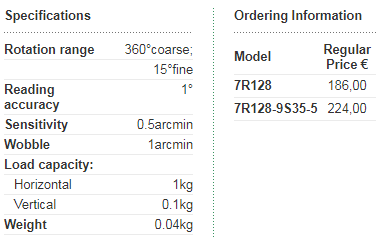

360° rotation platform. Wobble 1 arcmin. Could be attached with other micro stages

Micro Rotation Stage 7R128 is a compact 360° rotation platform. Using a fine screw it is possible to rotate the platform very precisely. Pitch of the screw is 0.25mm.Vernier can be read to . Using M2 screws and an angle bracket 2AB128, this compact rotation stage may be attached to other micro stages (like micro translation stage 7T128). Other angle brackets are available in order to attach micro rotation stage to other units, for example to 5OM111. Produced from black anodized aluminium.


Links: 3SMP3RBP2AB1287T1285OM111.

In the video below 7R128 series micro rotation stages are shown together with motorized miniauture rotary stage.
