Wavelength

• from 635nm to 2450nm

High optical power

• output power up to 100mW

• excellent quantum efficiency

• high fiber coupling efficiency

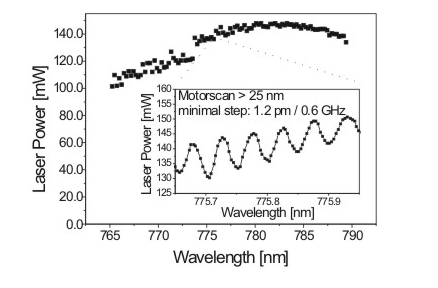

Excellent tuning behavior

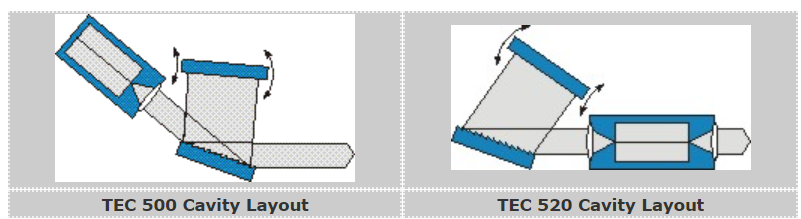

• large mode-hop free tuning range due to patented cavity

• fine tuning via piezo-actuator with a resolution better than 1MHz

• precise, smooth tuning via DC motor (avoding Stepper Motor caused Mode-Hops)

• use of in-house anti-reflection coated laser diodes

Narrow linewidth

• linewidth < 100kHz @ 1ms

• excellent side mode suppression > 50dB

High flexibility

• systems with the wavelength regime of 635nm to 2450nm are available

• further wavelength are under development

• free beam and fiber coupled versions available

• constant current and constant power operation modes (optional)

• excellent laser performance and frequency stability

Plug & Play configuration

• automated wavelength tuning with wavelength and power read-out

• remote control via USB, Serial Port


Application:
Applications for the new laser generation include:

• Spectroscopy und optical process control
• Master laser for THz generation
• Optical cooling and trapping, BEC
• Absolute distance interferometry
• Laser and OPO seeding
• Non-linear optical processes
• Characterizing of fiber optical systems

Optional Accessories

• Optical Isolator
• Single Mode PM Optical Fiber
• High-Frequency Current Modulation
• Contact us for more Options
