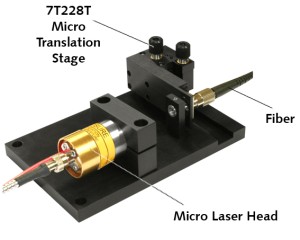

Sub nanosecond (<1 ns) single longitudinal mode passive Q-switched Nd:Yag micro lasers available from Standa are able to provide output peak power up to 200 kW, high pulse repetition rates up to 120 kHz and excellent beam profile M2<1.2. This family of high reliable, solid-state diode pumped lasers consists of a controller unit and a laser head. The controller unit includes a laser diode (LD) driver electronics, fiber pigtailed laser diode, and internal pulse generator. Built-in pulse generator can be replaced by external TTL triggering is a standard feature for all models.
Easy to deploy and use our OEM laser system lets you to concentrate on experiment rather than waste time on the laser. Please check the image below to find the available OEM product ranges. Dots indicate already manufactured OEM lasers.
- Features
. TEM00 and pulsed spectral structure SLM
. Cost effective 1062.5 nm / 1064 nm output wavelength
. High output energy and peak power
. High repetition rates up to 120 kHz
. High beam quality (M2<1.1)
. Sub nanosecond pulses (<1 ns)
. High reliability and stability
. Compact OEM design
