제조사 STANDA Ltd

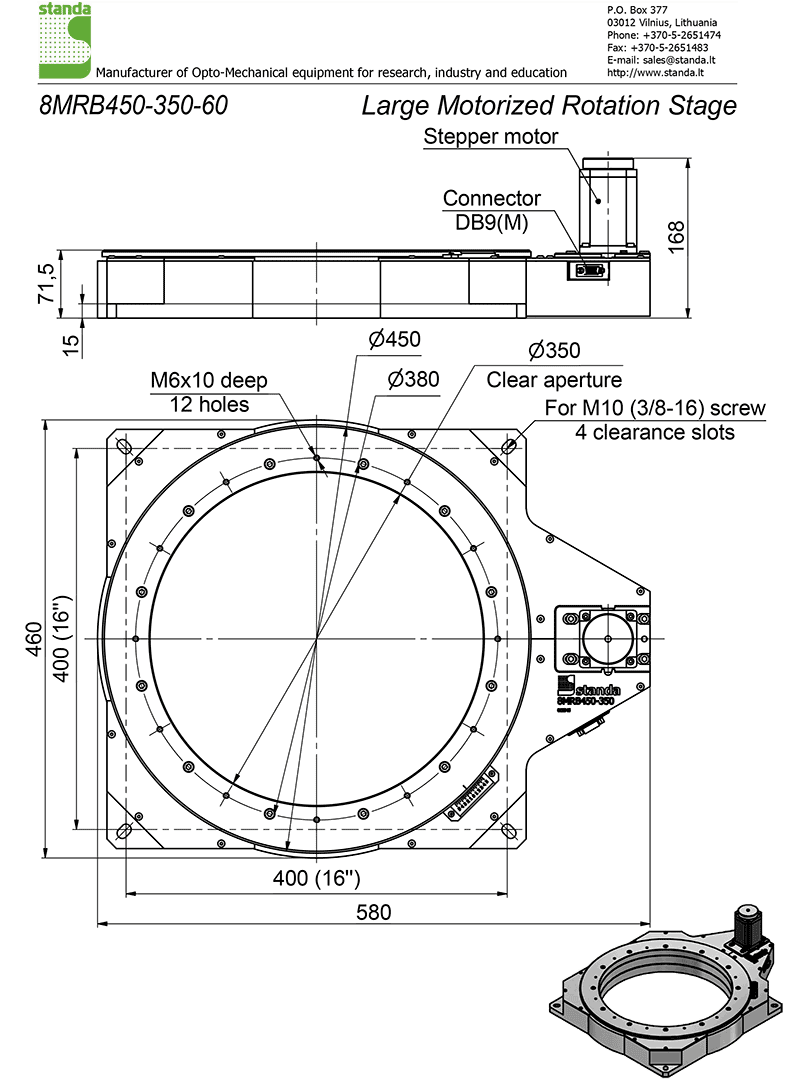

8MRB450-350-60 - Large Aperture Rotary Table (Motorized)
Large Aperture Rotary Table (Motorized)
== 옵션선택 ==
8MRB450-350-60 - Large Aperture Rotary Table (Motorized)
목록

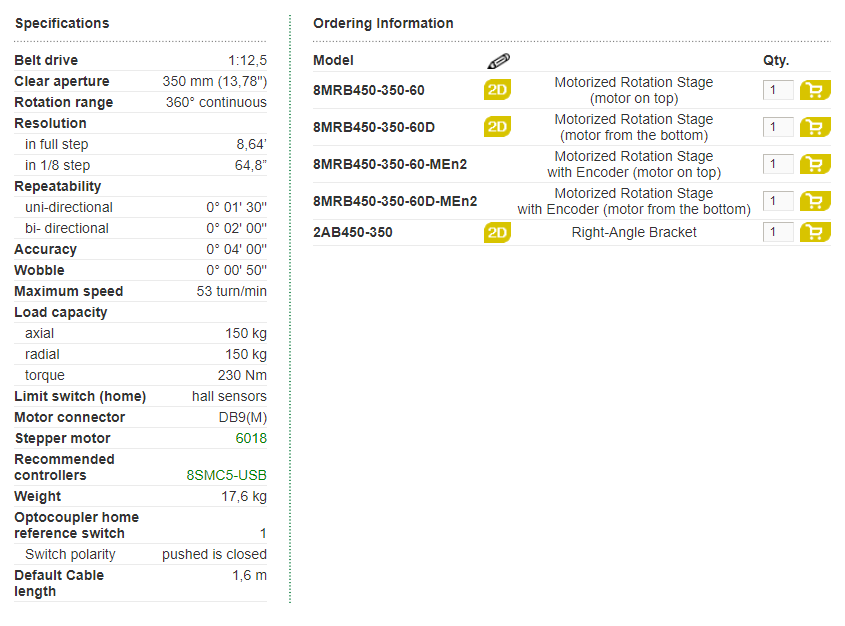

Specification
Standa introduces extra large aperture motorized rotation stage 8MRB450-350-60 which provides precision angular positioning accuracy combined with high load capacity. Rotation stage body is constructed of anodized aluminum and has single monolithic design; rotation accuracy ensured by the precision bearings and belt drive system - all that provide improved stiffness without affecting a dynamic performance. The stage is driven by the stepper motor (or servo on request) with programmable micro-stepping resolutions to provide sub-arcminute angular positioning.
