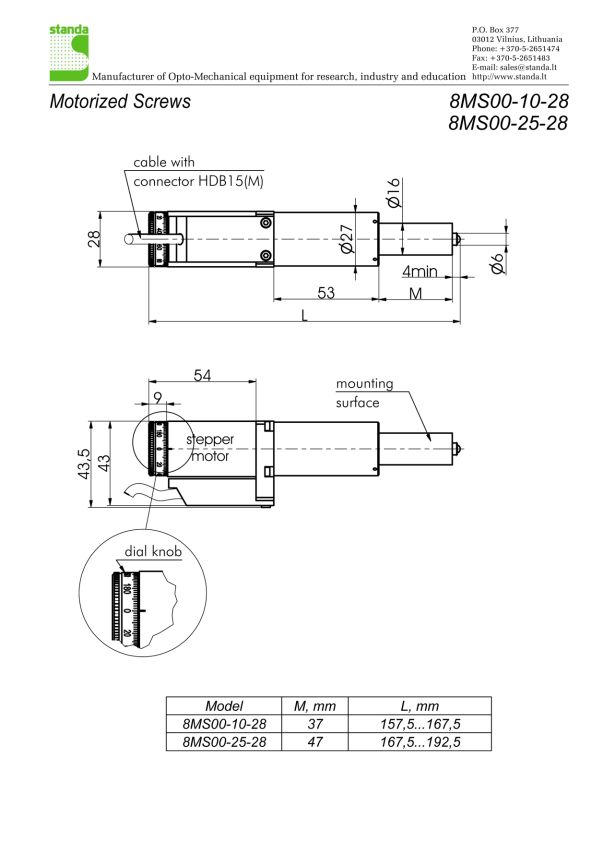

8MS00-10-28 / 8MS00-25-28
8MS00-10 / 8MS00-25 |
8MS00V-10-VSS43 / 8MS00V-25-VSS43 |
| Model |
8MS00-10 / -25 |
8MS00- 10 / 25 -28 |
8MS00V- 10 / 25 -VSS43 |
| Travel Range, mm |
10 / 25 |
| Lead screw pitch, mm |
0.25 |
| Resolution in full step, µm |
1.25 |
| Nominal force, N |
80 |
60 |
30 |
| Integrated cable, length |
- |
1.6 m |
vacuum compatible cable, 2 m |
| Motor connector |
DB9(M) |
HDB15(M) |
HDB15(M) |
| Stepper motor |
4247 |
28 |
VSS43 |
| Weight, kg |
0.5 / 0.55 |
0.45 / 0.5 |
0.55 / 0.6 |
| Vacuum, Torr |
- |
- |
10-6 |
| Recommended controllers |
8SMC5-USB |
| Mechanical end limit switches |
2, pushed is "closed" |
| Tip shape |
Round by default. Flat on request. |
|
