Motorized Vertical drive optical mount 8MKVDOM-1 are designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. 8MKVDOM-1 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion.
Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements.
These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.

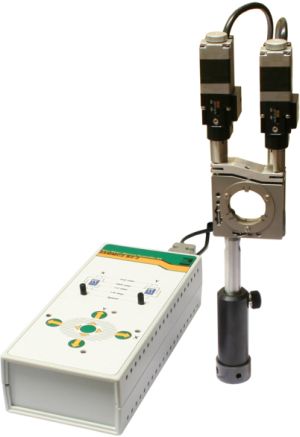

Motorized Vertical drive optical mount 8MKVDOM-1
with 2 axis step motor Manual Controller in box 8SMMC2-B2-2
|
Base plate 3BPVDOM

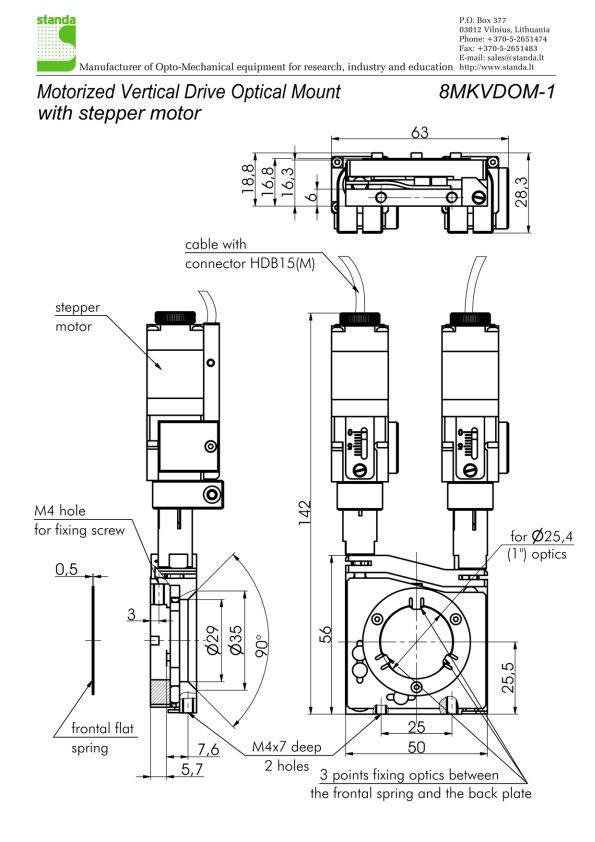

 View drawings
|
Manual Vertical drive optical mounts series
