The principle of intensity re-distribution requires the πShaper to be properly aligned using 4-axis mounts. Typical tolerances are 0.1 mm lateral shift and 10 arcmin tilt, - these conditions can be easily fulfilled by widely used optical Mounts.

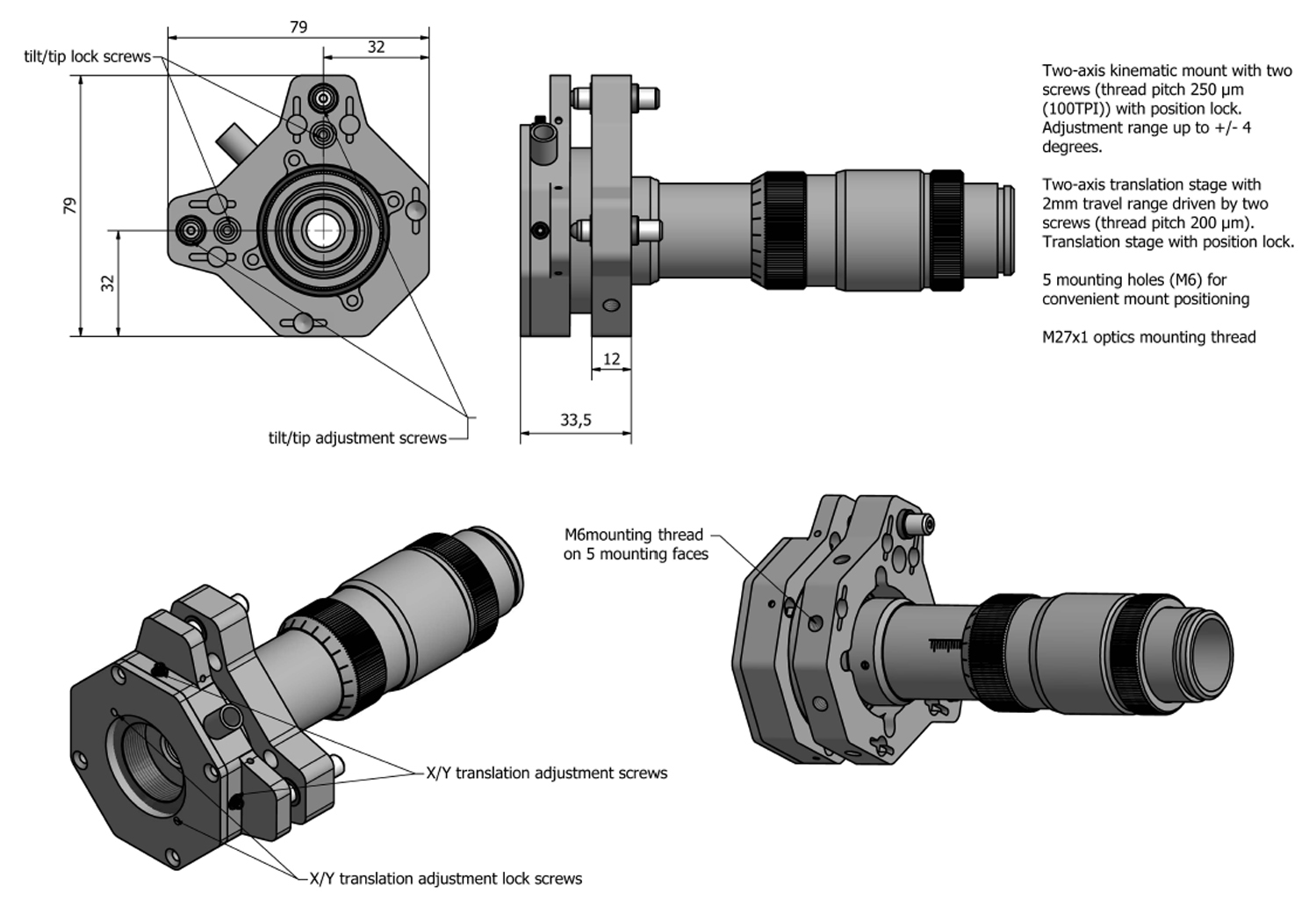

πShaper Mount for industrial applications:
- 4-axis Mount alignment
- HEX alignment screws
- locking alignment screws after finishing the alignment
- 5 mounting faces for optimum orientation
Technical Specifications
| Tilt/tip range |
±4° |
| Sensitivity |
3 arcsec |
| XY translation range |
±2 mm |
| Sensitivity for XY translation |
1 µm |
| Locking of alignment screws |
Yes |
| πShaper Mounting |
Inner Thread M 27x1 |
| Overall dimensions |
79 x 79 x 34 mm |
| Mounting |
Thread M6, 5 positions |
| Weight |
200 g |
