ABRIS M viewers

Infrared viewer (IR View)

2,992,000원
총 상품금액
2,992,000원

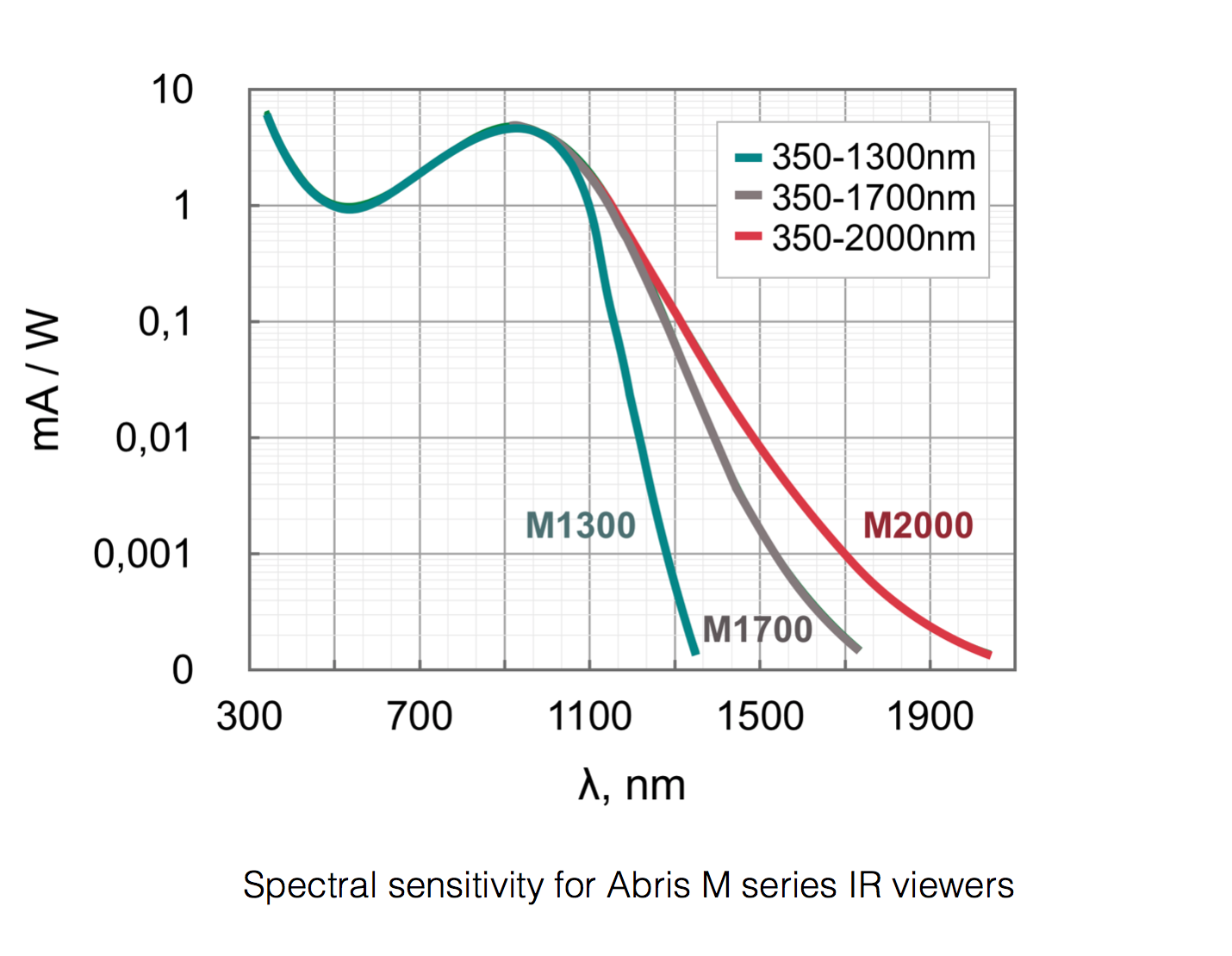

Spectral region is 350 – 2000 nm;
Better resolution (60Lp/mm) and higher-sensitivity (up to 2 times better) compared with SM-3R viewer;
Hand-held / post mounted;
Battery + DC powered;
Up to 35 hours continuous working;
Pulsed and CW light detection without synchronisation;
Connect to PC via video adapter;

2 Years warranty





Product Description

High performance image conversion IR viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.

How Infrared viewer works?

(IR) Infrared viewer is based on a first generation high-grade image converter that has an electro-static focusing system, photocathode S-1+ with increased concentration of oxygen and screen of type P-20 with maximum of luminescence at 550nm.

Infrared viewer focus emitted or reflected light from a chosen subject into the image tube where electron image is generated. When powered (with battery or power supply) the 16-18 kV voltage is generated required to accelerate the electron image into the output phosphor screen. The fluorescent green light output (550 nm) is observed via an adjustable eyepiece lens.

Typical applications

  • Laser alignment and safety
    (IR) Infrared viewer is ideal for alignment of infrared laser beam and optical components in near infrared systems.
  • Semiconductors inspection
    With a microscope adapter IR viewer can be used to view through the surface of silicon and gallium arsenide wafers.
  • Forensics and art restoration
  • Photo processing
  • Thermal imaging
