Narrow translation stage 7T30-50 is a manual modification to the newly developed motorized stage 8MT30-50, which incorporates all the improvements and modifications implemented since its predecessor 8MT173-20-50 was launched. 7T30-50 boasts possibility to operate in any orientation, which means that the stage can be hung upside-down or be operated vertically with platform facing upward or downward. Durability of stage was taken seriously into consideration and now you can apply grease directly to the screw without disassembling the stage. Vertical load capacity is increased to 5 kg. Stage is spring preloaded to eliminate backslash. Design of 7T30-50 ensures more stable and precise motion over full translation range. An array of mounting holes on a platform and on a base allow a variety of convenient mounting options, including mounting on 3MP series Posts. For vertical (Z axis) mounting we offer angle bracket 2AB173-20-50. Angle brackets of custom design can be manufactured on request. Body and platform of 7T30-50 are made of black finished aluminum. Functional parts are made of steel.

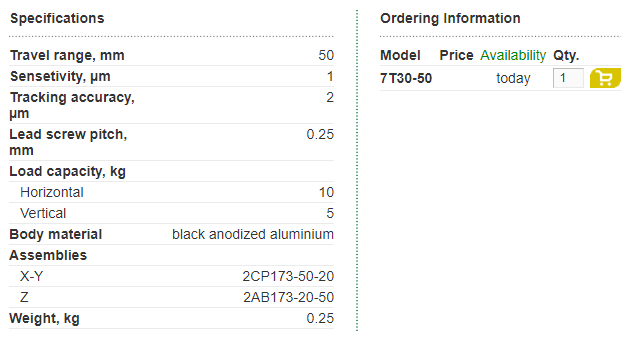

2AB173-20-50 |
2CP173-50-20 |
3UBP-04 |
2AB173-20-50 Angle Bracket is used to fix stages in Z configuration.
2CP173-50-20 Connecting Plate is used to stack stages in XY configuration.
3UBP-04 Universal Base Plate is required to fix stages or whole assembly to a flat surface e.g. optical table. Bottom of the stages is made with a series of holes for direct mounting - please see the drawing.
