7T125 - Basic Translation Stages
  • 7T125 - Basic Translation Stages
제조사 STANDA Ltd
7T125 - Basic Translation Stages

Basic Translation Stages

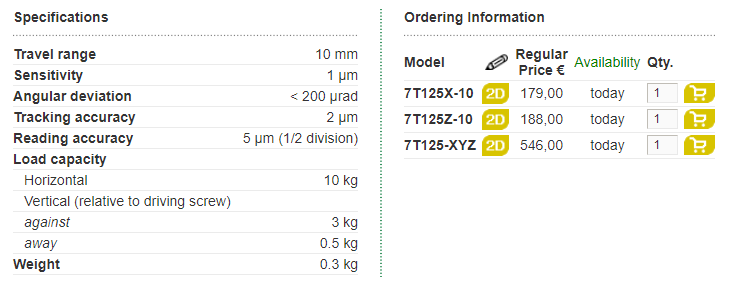

Basic Translation Stages 7T125. 7T125X-10 - for X axis. Two such stages stack in XY axes with greater stability (2 screws M6 are used). 7T125Z-10 - for Z axis. It has less XY mounting provisions than 7T125X. Rather it has extra mounting holes for end items. 2 screws M6 are used for Z stacking. 7T125Z-10 has patterns of mounting holes: M6 on the platform and M4 on the base. The base has a Ø12 mm clear aperture not obscured over the whole travel range. The platform rolls on ball bearing guides, and is preloaded against the driving screw by springs. Load capacity is up to 3 kg, when mounted vertically. The stages mount directly to their own type, or to other stages, optical tables. The stages are of black finished aluminium.


Basic Translation Stages 7T125 XYZ
XYZ, stages stacks directly to its own type. Only 4 standart M6 screws required.
