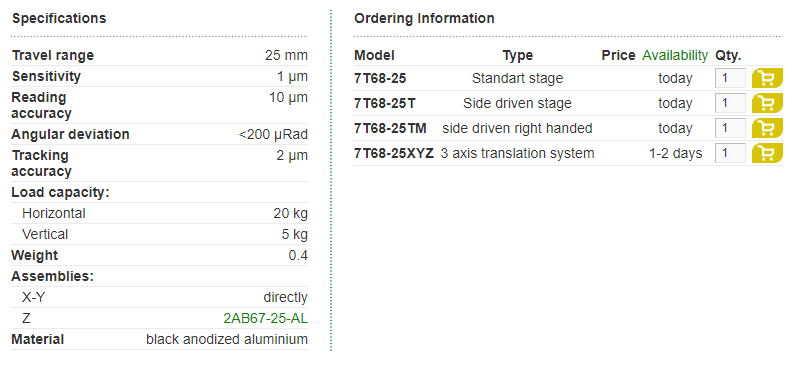

Stable Aluminium Translation Stages 7T68 have large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. The platform is preloaded by springs. The stage could be stacked immediately to other units or to their own type (e.g. in X-Y configuration). Z-axis is attached through angle bracket 2AB67-25-AL. The stage could be used upside-down. For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has 4 clearance holes for M4 screws. Slip the screws from top or under through the across holes in a platform/base. Micrometers 9S75M-25 comes as standard.
7T68-25 XYZ 3 axis translation system.
