Low Profile Translation Stage 7T167-100Q is designed to use with a microscope. Coarse movement of the sample can be achieved by releasing the lever, fine position can then be achieved by the adjustment screw.
![](http://www.standa.lt/images/graphics/1078364108.gif)
![Low Profile Translation Stage with Quick Move Lever Low Profile Translation Stage with Quick Move Lever](http://www.standa.lt/images/graphics/1333441191.jpg)
Stages stack directly in XY configuration. Ideal in applications where X, X-Y precision linear positioning is required. For using it in XYZ configuration any other Standa linear positioner could be utilized as a Z-axis, which could be mounted through appropriate angle bracket. In that case apply to sales engineers with your application needs for assistance.
Insert platform 7T167-25.07-01 is included with every stage.

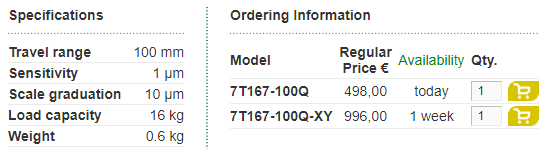

![](/uploads/editor/b058882b2a7c4a77f859a64c4d3f3175.PNG)
