7T164SS-10 - Ultra Low Profile Stainless Steel Translation Stage
  • 7T164SS-10 - Ultra Low Profile Stainless Steel Translation Stage
제조사 STANDA Ltd
7T164SS-10 - Ultra Low Profile Stainless Steel Translation Stage

Ultra Low Profile Stainless Steel Translation Stage

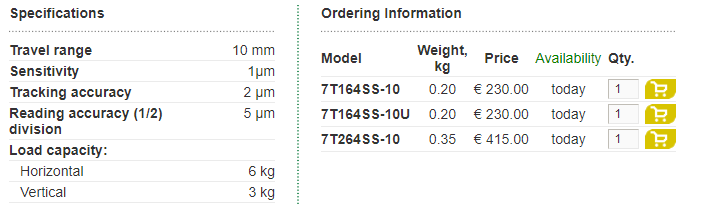

Ultra Low Profile Stainless Steel Two Axis 7T264SS-10 and Single Axis 7T164SS-10 Translation Stages. The height of single axis translation stage is 10.5 mm and two axis translation stage - 20 mm. To match the low height of the stage Thin Micrometers 9S55-10 with small knob diameter (13 mm) are used as driving screws. It is possible to easily combine 7T264SS-10, 7T164SS-10 and angle bracket 2AB164V to have 3 axis translation system. Difference between models 7T164SS-10 and 7T164SS-10U is that the 7T164SS-10U has a reversed central hole compared to the 7T164SS-10. Although the system looks very light and thin, it is very reliable and precise. Modifications for vacuum available, see related links bellow.



Base Plates 3UBP-01 and 3UBP-03 fit the stages just as fine as 3UBP-02
7T164SS-10 XYZ 2AB164SS

Universal Base Plate 3UBPV-04
is used to fix stages to flat surface




Example of custom design on request, 7T264-10VD
