Stainless Steel Translation Stages 7T67-6 have low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. The platform is preloaded by springs. The stage could be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The stage can be used upside-down. The stages are entirely made of stainless steel.
|

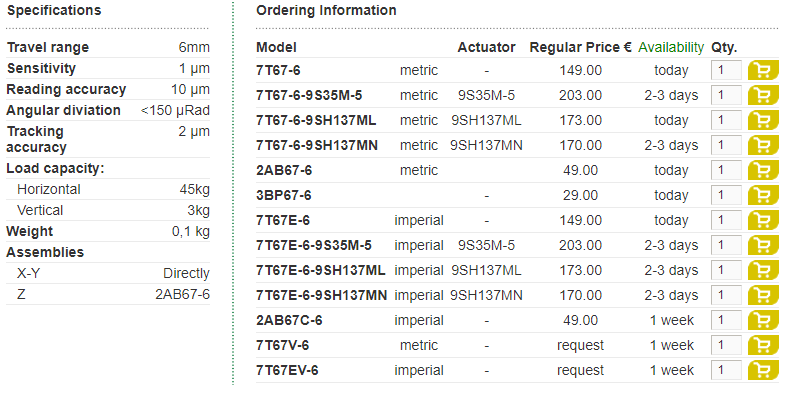

7T67-6-9S35M-5 |
7T67-6-9SH137MN |
7T67-6-9SH137ML |
|
2AB67-6 Angle Bracket |
7T67-6 XYZ
3 axis translation system |
3BP67-6 Base Plate
(or 3UBP series base plate)
is required for fixing 7T67-6
to the optical table
and needs to be ordered separately |
NOTE: actuator is not included. It can be ordered separately. Suitable micrometers are: 9S35M-5, 9SH137ML, 9SH137MN.
