7T273-10 - Low Profile Two-Axis Aluminium Translation Stage

Low Profile Two-Axis Aluminium Translation Stage

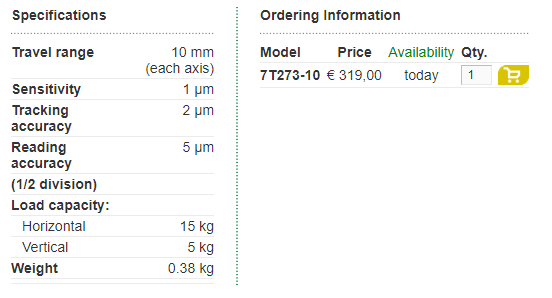

Low Profile Two-Axis Aluminium Translation Stage 7T273-10 provides smooth, precise X-Y axis movement. The travel range of this stage is 10mm in each axis with 10µm resolution. Eight M4 tapped holes are provided in order to mount other components. It can be directly mounted to breadboards and other equipment from Standa by use of mounting holes Ø4.5 mm and M4. The base and the platform are produced from the black anodized aluminum. For Z axis add 2AB164 and 7T164-10.


3UBP universal base plates for stacking the translation stages to STANDA optical tables or to another stages.
