Fixed Magnification Laser Beam Expander

10BE02

목록

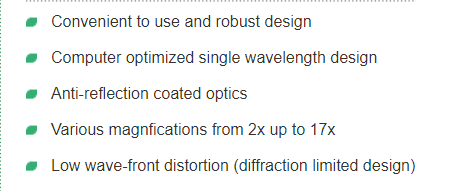

Standa Galilean type fixed magnification Beam Expanders are ideal solution to expand or reduce your laser beam diameter. Our beam expanders are a good choice for both scientific and industrial applications. Simple non-adjustable beam expanders containing two or three lenses are often used because of their reasonable prices, simplicity and small size.

Our beam expanders are compatible with our standard 5TLM-1TH, 5(M)BM, 5KOM or 5TOM series mounts.

Typical applications include:
• Micro drilling
• LIDAR systems
• Beam condensing
• Colimation of laser harmonics
• Cutting of solar cells
• Laser structuring of foils
• Interferometers
• Colimation of high power laser beams

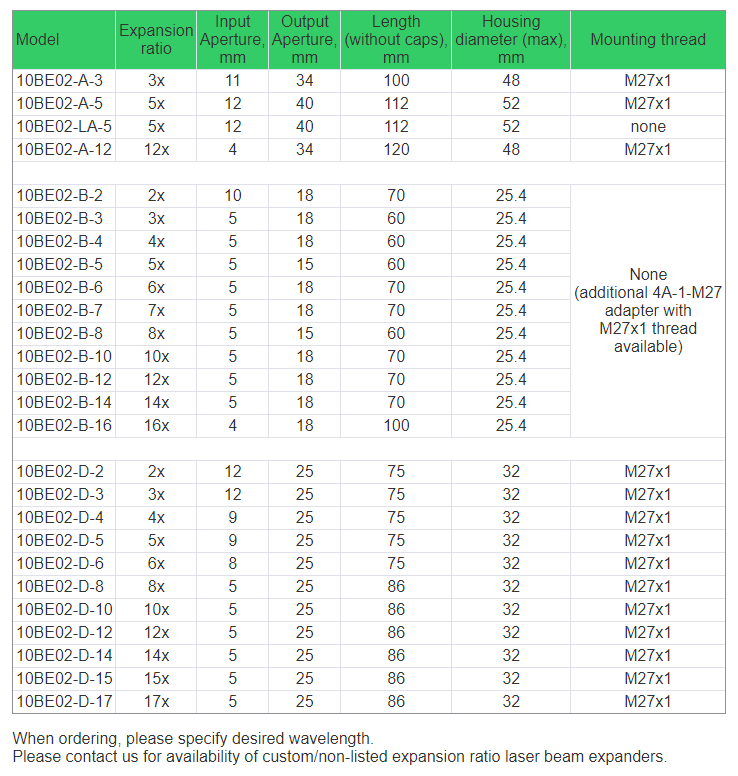

General specifications
• Optics Material: FS or UVFS. CaF2 (optional), ZnSe (optional)
• Housing material: Aluminium
• Standard wavelengths: 355 nm, 515 nm, 532 nm, 780 nm, 800 nm, 1030 nm, 1064 nm
• Transmitted wavefront distortion: λ/4 p-v at 633nm over clear aperture
• Damage threshold: >8 J/cm2 for 10 ns pulses @ 1064 nm
• Transmission: 97%
