| Model |
11UP55G-600F-HD |

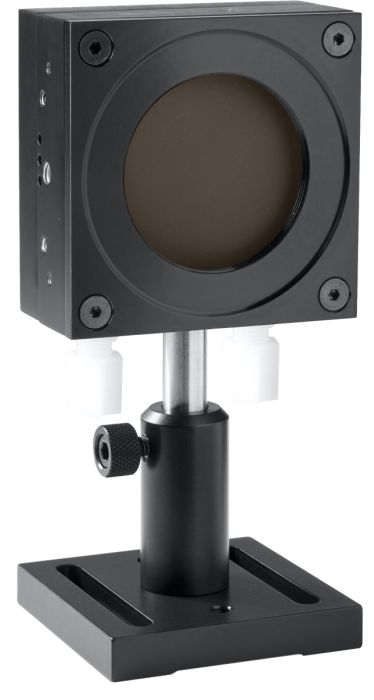

11UP55M-700W-HD |

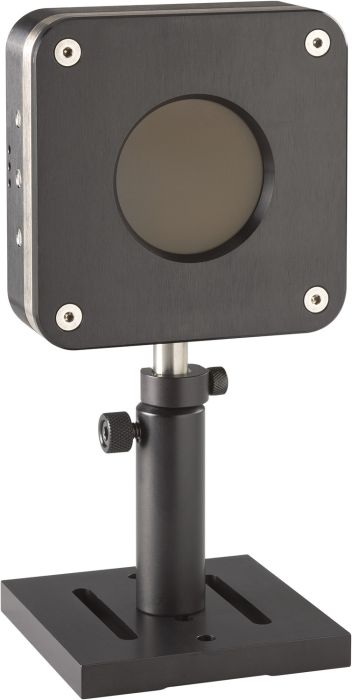

11UP55C-2.5KW-HD |
| MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE) |
600 W / 600 W |
700 W f / 700 W |
f 2 500 W / 2 500 W |
| EFFECTIVE APERTURE |
55 mm Ø |
55 mm Ø |
55 mm Ø |
| COOLING METHOD |
Fan-Cooled |
Water-Cooled |
Water-Cooled |
| MEASUREMENT CAPABILITY |
| Spectral Range * |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
| Noise Equivalent Power a |
45 mW |
45 mW |
200 mW |
| Rise Time (nominal) b |
2.8 sec |
2 sec |
3.5 sec |
| Sensitivity (typ into 100 kΩ load) c |
0.03 mV/W |
0.03 mV/W |
8 µV/W |
| Calibration Uncertainty d |
±2.5 % |
±2.5 % |
±2.5 % |
| Repeatability |
±0.5 % |
±0.5 % |
±0.5 % |
| Energy Mode |
| Sensitivity |
0.008 mV/J |
0.008 mV/J |
--- |
| Maximum Measurable Energy e |
200 J |
200 J |
--- |
| Noise Equivalent Energy a |
0.25 J |
0.25 J |
--- |
| Minimum Repetition Period |
12 sec |
12 sec |
--- |
| Maximum Pulse Width |
430 ms |
430 ms |
--- |
| Accuracy with energy calibration option |
±5 % |
±5 % |
--- |
| DAMAGE THRESHOLDS |
| Maximum Average Power Density |
| 1064 nm, 10 W, CW |
45 kW/cm2 |
45 kW/cm2 |
45 kW/cm2 |
| 1064 nm, 500 W, CW |
8 kW/cm2 |
8 kW/cm2 |
9 kW/cm2 |
| 1064 nm, 2 500 W, CW |
--- |
--- |
6 kW/cm2 |
| Pulsed Laser Damage Thresholds |
Max Energy Density |
Max Power Density |
| 1064 nm, 360 µs, 5 Hz |
9 J/cm2 |
25 kW/cm2 |
| 1064 nm, 7 ns, 10 Hz |
1 J/cm2 |
143 MW/cm2 |
| 532 nm, 7 ns, 10 Hz |
0.6 J/cm2 |
86 MW/cm2 |
| 266 nm, 7 ns, 10 Hz |
0.3 J/cm2 |
43 MW/cm2 |
| PHYSICAL CHARACTERISTICS |
| Effective Aperture |
55 mm Ø |
55 mm Ø |
55 mm Ø |
| Absorber (High Damage Threshold) |
HD |
HD |
HD |
| Dimensions |
120H x 120W x 135D mm |
89H x 89W x 40D mm |
116H x 116W x 48D mm |
| Weight (head only) |
2.75 kg |
0.90 kg |
1.95 kg |
