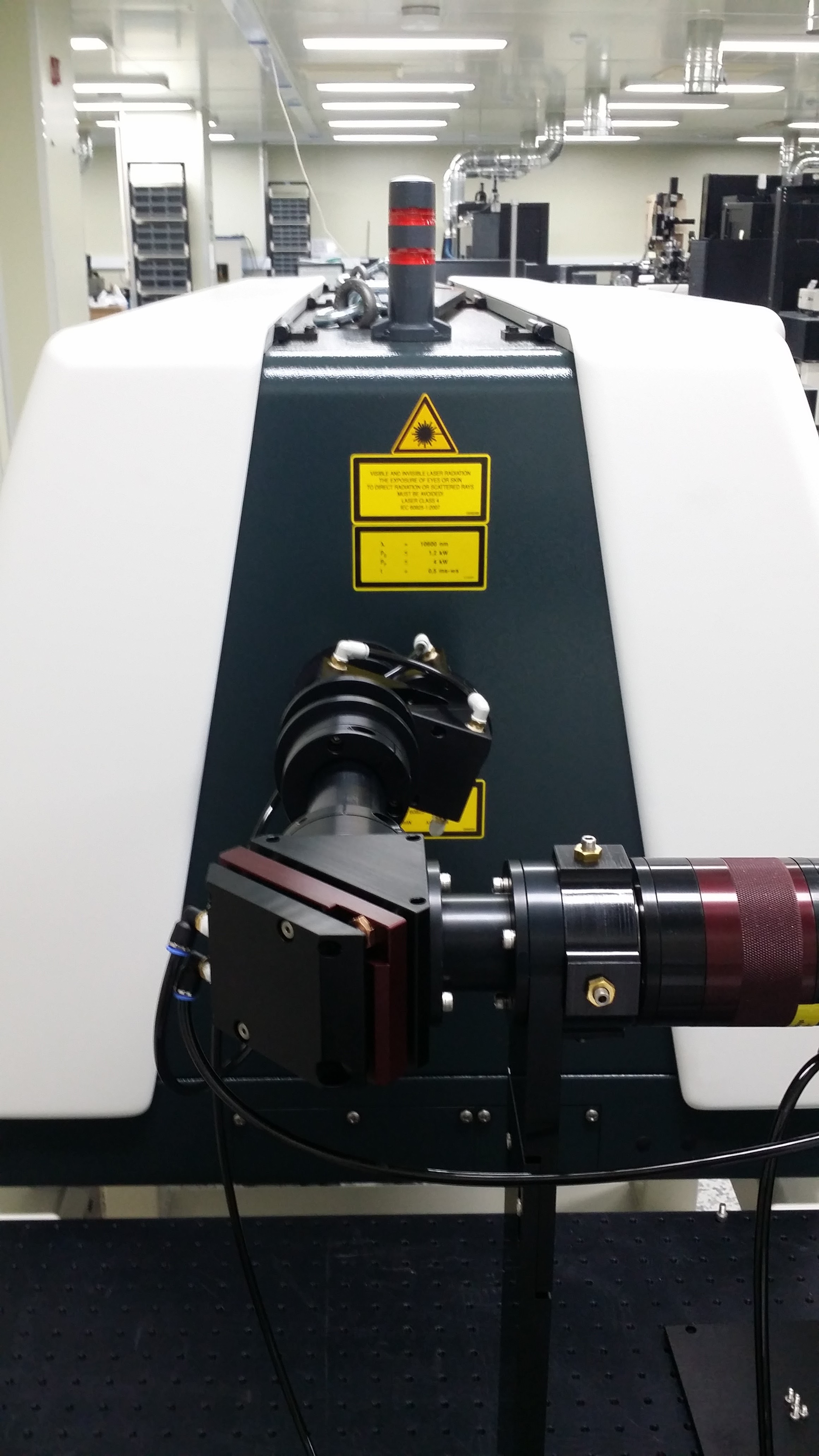

1. 1KW CO2 Laser (rofin)

  - Wavelength : 10.6 um

  - Power : 1 kW

2. . XYZ Gantry Stage(3-Axis)

  - Travel : 500mm⨯500mm⨯200mm 이상

  - Resolution : 0.5um 이하

  - Accuracy : ± 50um 이하

  - Flatness & Straightness : ± 50um 이하

  - Bi-directional repeatability : ± 25um 이하

  - XY : Coreless Linear Motor

  - XY Maximum speed : 300 mm/sec 이상

  - Z Maximum speed : 100 mm/sec 이상

  - Z Load Capacity : 25kg 이상

  - XY Load Capacity : 100kg 이상

  - Controller & Driver

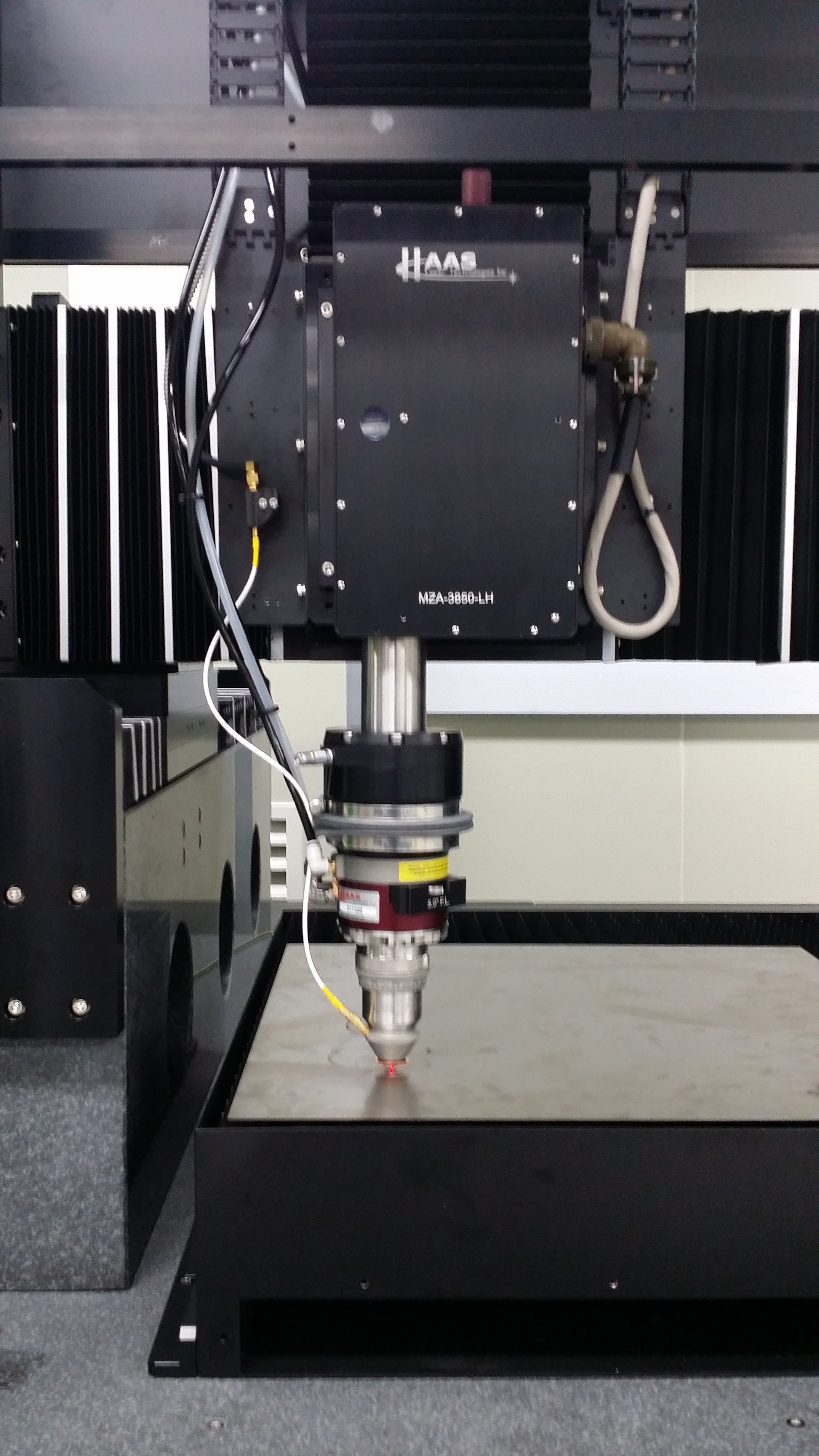

2. Laser Process Head

  - Laser Wavelength : 9.3~10.6um, Power: 1kW 이상

  - Focal length : 50mm ± 10mm

  - Clear Aperture : 34.5mm ± 1mm

  - Gas Jet Manifold rated at 25 barr

  - X-Y Adjustable Optic Cartridge for Dia. 1.5mm , 5.0 Focus Lens

  - Replaceable Copper Nozzle Tip, Dia. 1.5mm

3. Capacitive Height Sensing Control System

  - Microprocessor Controlled

  - Software Controlled Sensor Calibration

  - Digital Linearization (Linear Range ±3.5mm)

  - 3-Point Calibration Teach Process

  - Two-Channel Design for different Nozzle Designs

  - Tip Touch Alarm

  - Sensor Cable Short Alarm

  - Capacitive Nozzle Body
