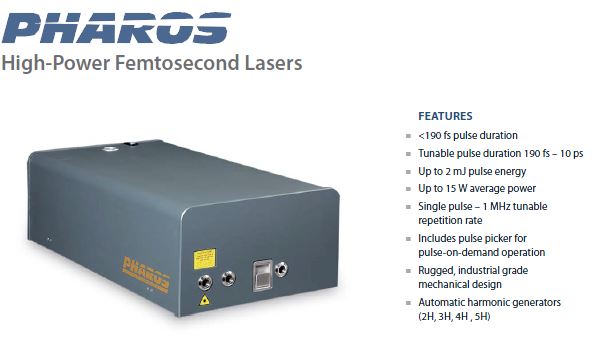

1. Femto Second Laser

   - Output wavelength (automated selection)  : 1030nm, 515nm, 343nm

   - pulse energy : 50 – 1000 μJ

   - pulse duration : 190 ~ 300 fs

2. Air Bearing Stage

   - XYZ Granite Base Stage

   - Maximun Speed (XY) : 500 mm/s

   - Travel XY : X 750mm, Y 500mm

   - Accuracy : ±2.0um  (full travel)

   - Repeatbility : ±0.5um

3. Objective lens / Galvanometer Scanner

   - Dual Wavelength Galvanometer : 1030nm + 515nm

   - Wavelength Galvanometer : 343nm

   - Mitutoyo objective lens : NIR, UV, DUV

4. Machine vision System

   - Inline machine vision : zoom type 0.75 ~ 6X

5. CAD/CAM software

   - Import : Autocad, inventor, dxf, dwg

   - simulation fuction

   - Option : 3D Slice process

6. Vaccum Chuck

7. Suction/Blower Parts

8. Option : rotary stage for stent

Applications :

Processing of sola r cells

Edge isola tion for sola r cells

Nano ripples, Metal micromachining

Marking of contact lens

Micro channel formation

Diamond cutting

Glass Holes

Stent Cutting

Marking and Pattern

Texturized Sapphire Surface
