1. Laser

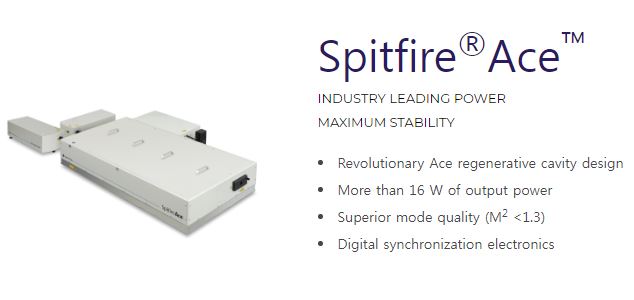

- spectra physics Spitfire Ace Ultrafast Amplifier
- Wavelgength : 800 nm
- Pulse Width : < 120 fs
- Average Power : 5W
- Repetition Rate6 : 1 kHz, 5 kHz or 10 kHz

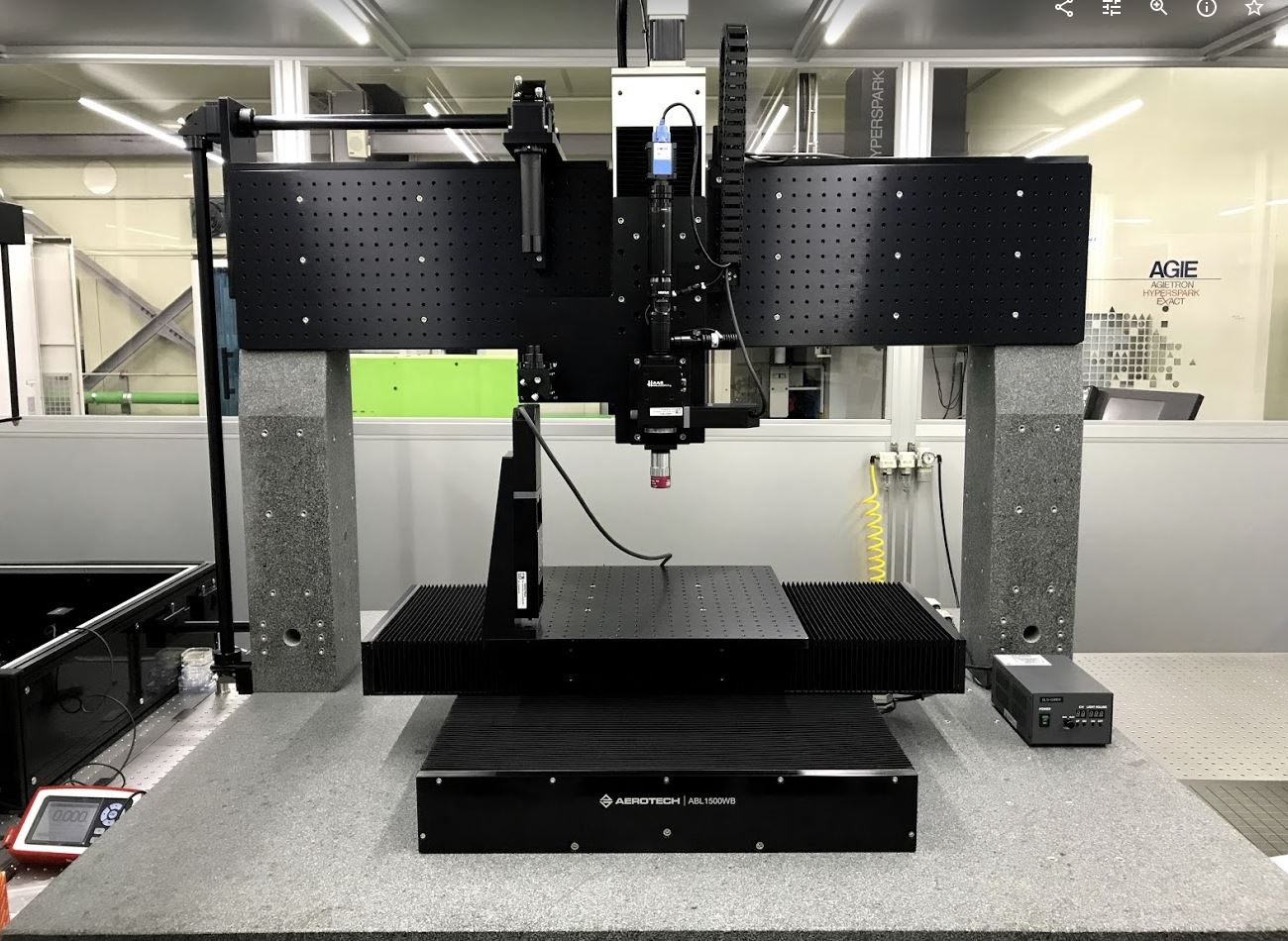

2. Air Bearing Stage
- XYZ Granite Base Stage
- Maximun Speed (XY) : 200 mm/s
- Travel XY : X 300mm, Y 300mm
- Accuracy : ±1.0um
3. Objective lens / Galvanometer Scanner
- Scanlab Galvanometer
- Mitutoyo objective lens : NIR, UV, DUV
4. Machine vision System
- Inline machine vision : zoom type 0.75 ~ 6X
5. CAD/CAM software
- Import : Autocad, inventor, dxf, dwg
- simulation fuction
- Option : 3D Slice process
6. Vaccum Chuck
7. Suction/Blower Parts
8. Option : rotary stage for stent
A P P L I C A T I O N S
• Multicolor pump-probe spectroscopy
• Coherent control
• Nonlinear optics
• Time resolved spectroscopy
• Four wave mixing spectroscopy
• Material processing
• Optical parametric amplification
