Adjustable Force Fiber Clamp - 7FA1

 V-Grooved insert has 5 different V-Grooves and one flat surface
 V-Grooves are suitable for fibers or cylindrical optical elements in the range of 125 µm to 2 mm in diameter
 Adjustable force fiber clamping arm, 20 to 250g
 Knob on the top is for adjusting the clamping force

7FA1 is fast release Adjustable Force Fiber Clamp allows fixing fibers of different diameters in V-grooves. The top knob is used to adjust the clamping forces that the clamping arm exerts on the fiber, this feature is useful when working with specialty fibers such as highly birefringent fibers, photonic crystal fibers, or different glass fibers. This Adjustable Force Fiber Clamp has been designed to allow rapid mounting and dismounting of a variety of photonic components from bare optical fibers, optical fibers mounted in ceramic ferrules, to multi-channel waveguides.

Microscope Objective Holder - 7FA2

 Standard RMS
 Microscope objective thread
 Wide range of micro objectives

Fiber Cable Clamp - 7FA4

 This accessory prevents cabled fiber from being accidentally disturbed. For cables with diameters from 900 µm to 3 mm.

Adapter Plate - 7FA6

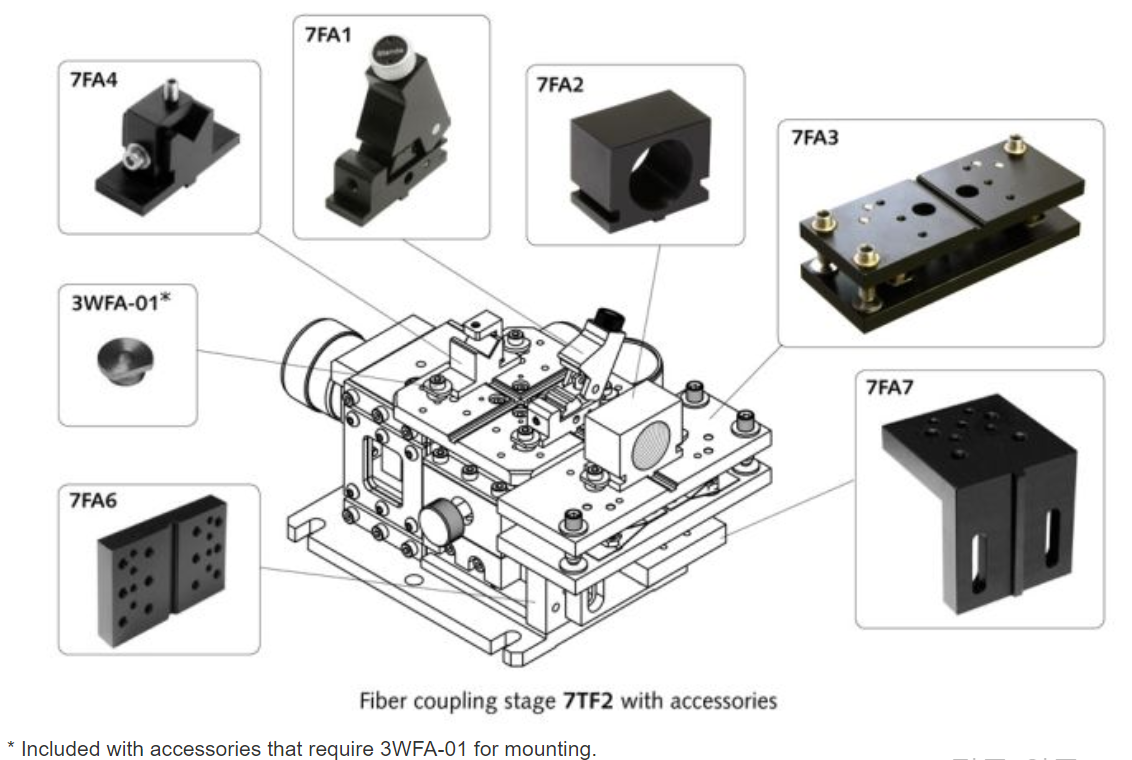

 Fixed Angle Bracket 7FA7 is mounted through Adapter Plate 7FA6 to the fixed part of Fiber Coupling Stage 7TF2

Fixed Angle Bracket - 7FA7

 Is used as an adjustable platform for mounting other components

Lock-Down Clamp - 3WFA-01

 These clamps are used to fix the accessories to the mounting platform of the 7TF2
