The Motorized scanning stages 8MTF are designed for applications where high accuracy and repeatability is required.
Microscopy is the most common application for such devices. All scanning stages require a motion controller to operate.

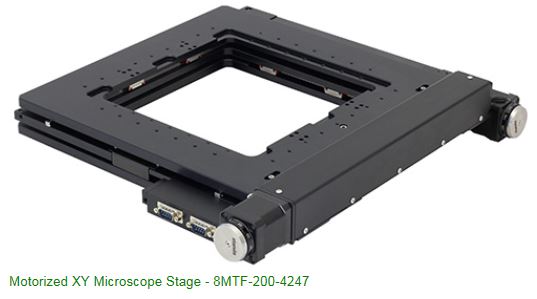

Large motorized XY microscope stage which has low profile in view of its specifications: 200x200 mm travel range with 205x205 mm aperture is already available.

Specifications  Lead screw pitch  0.5 mm  Resolution    Full Step  2.5 um     1/8 step  0.31 um    Max speed  10mm/sec    Load capacity      Horizontal  50 kg     Vertical  6 kg    Weight      8MTF-75LS05  3.1 kg     8MTF-102LS05  3.6 kg    Cable  integrated, 1.6 m length    Motor connector  HDB15(M) (pinouts diagram)    Stepper motor  28    Recommended controller  8SMC5-USB-B9-2    Mechanical end limit switches  4 (2 per axis)     Switch polarity  pushed is closed

Travel range 75x75 mm (3") or 102x102 mm (4") Accepts linear encoders USB or RS232 control Custom support brackets available for various microscope types Suitable for most major brand Microscopes and Macroviewers Excellent for imaging analysis, precision scanning, multi-axis systems Model for vacuum
