For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off. Ordering code of Z stages is 8MT50Z and it is also implemented in XYZ assemblies by default.
Controller 8SMC5-USB...-1BR is required to take advantage of the brake equipped stage capabilities.
8MT193-100DCE with DC motor
|
Specifications
Travel range mm
8MT50-100BS1 100
8MT50-150BS1 150
8MT50-200BS1 200
Ball screw pitch, mm 1
Resolution in full step*, μm 5
Max. speed*, mm/s 20
Load capacity
Horizontal, kg 30
Vertical, kg 8
Motor connector DB9(M)
Stepper motor 4247
Weight, kg
8MT50-100BS1 1.1
8MT50-150BS1 1.4
8MT50-200BS1 1.65

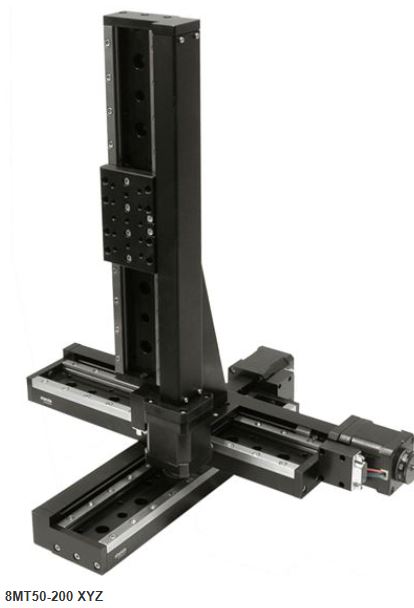

Assemblies:
X-Y directly

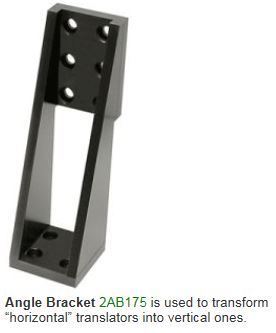

Z through angle bracket 2AB175
Recommended controllers 8SMC5-USB
Mechanical end limit switches 2
Switch polarity pushed is closed
|
|
|
*Test condition: • STANDA controllers; • 36V.
