Ball screw linear translation stage of series 8MTF200XY is based on pair of stepper (optionally with rotary encoders) or 3 phase BLDC servo motor technology. High precision ball screw & servo motor combination allow user to apply high precision and self-locking system through extremely cost effective way.
Optionally available non-contact optical encoder as a feedback system integrated directly on the moving load, guarantees sub-nanometer resolution of positioning with high precision.
Naturally aged aluminum alloy guaranties high temperature stability, softness of 8MTF200XY instruments and excellent long period kinematics without drift of guide system. Miniature ultra-high precision linear recirculating guiding system guarantees minimal friction and excellent motion stability.
Positioning table of series 8MTF200XY can be optionally prepared for clean rooms and vacuum up to 10-3 Torr .For higher vacuum please contact Standa support. Additional requirement of cleanliness or sealing of the stage can be supported on demand.
Motorized translation stage can be easily connected to standard imperial/metric optical table directly. XY scanning stage is directly assembled to PLANAR three-piece like design, without using any connecting plates. Extremely high straightness, flatness and orthogonality is available by default.
Motion control of 8MTF series translation stages is available with Standa or ACS motion Controllers & Drivers in exposed or housed configurations.
For industry applications 8MTF200XY linear positioning stages can be supplied mounted on aluminum breadboard 1B-Al, honeycomb breadboard 1HB, standard optical table 1HT or extremely flat granite plate 1GB fully sealed from spray and dust to ensure long and reliable performance of kinematic pairs.
Moreover, Motorized XY table hase extremely low profile and compact design allow 8MTF-200XY to be incorporated into many different types of scanning systems and easily mounted to most common microscope platforms. Standa supports μ-manager host application.
Covered applications: #microscopy, #imaging, #micromachining, #laser cutting, #scribing, #wafer inspection, #PCB inspection , #PCB drilling, #PCB assembly, #robotics, #biotechnology, #metrology, #laser marking.

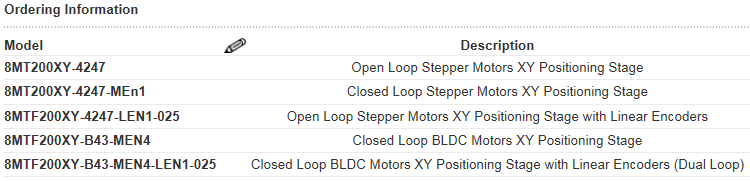

| Model |
8MT200XY-4247 |
8MT200XY-4247-MEN1 |
8MT200XY-B43-MEN4 |
8MT200XY-B43-MEN4-
LEN1-025 |
| Kinematics & Feedback information |
| Travel Range (X x Y), mm |
200 x 200 |
| Min. Incremental Motion, μm |
0.625 |
0.1 |
| Rotary Encoder Type |
- |
Optical |
| Rotary Encoder Model |
- |
MEN1 |
MEN4 |
| Rotary Encoder Resolution, μm |
- |
0.5 |
0.1 |
| Rotary Encoder Interface |
- |
TTL |
Differential RS422 |
| Rotary Encoder Internal Multiplier |
- |
NO |
| Rotary Encoder Multiplication factor 1) |
- |
| Rotary Encoder Grating Period, deg |
- |
0.09 |
0.018 |
| Rotary Encoder Reference Mark (Index) |
- |
Yes |
| Linear Encoder Type |
- |
Optical |
| Linear Encoder Model |
- |
LEn1 |
| Linear Encoder Resolution, nm |
- |
25 |
| Linear Encoder Interface |
- |
Differential
RS4221) |
| Linear Encoder Internal Multiplier |
- |
YES |
| Linear Encoder Multiplication factor 1) |
- |
x200 |
| Linear Encoder Grating Period, µm |
- |
20 |
| Linear Encoder Reference Mark (Index) |
- |
YES (center) |
| Absolute Accuracy 2) |
| Before Calibration, µm/mm |
±8/100 |
| After Calibration, µm |
request |
±3 |
±2 |
±1.5 |
| Uni-Directional Repeatability, µm |
±0.50 |
| Bi-Directional Repeatability (peak to peak) 2), µm |
±2 |
±1 |
±0.5 |
| Bi-Directional Repeatability (RMS) 2), µm |
±1.5 |
±1 |
±0.45 |
| Pitch 3), µrad / arcsec |
±100.00 / ±20.63 |
| Yaw 3), µrad / arcsec |
±30.00 / ±6.19 |
| Roll, µrad / arcsec |
±30.00 / ±6.19 |
| Maximum Velocity (with load 4kg) 4), mm/s |
30 |
50 |
| Maximum Acceleration (with load 4kg) 5), mm/s2 |
150 |
250 |
| Limits Switches Type (Safety) |
Digital Hall Sensors |
| Limit Switch Polarity (Safety) |
Pushed is open |
| Limit Switch Voltage, VDC |
5...24 |
|
|
|
|
- Ultra high precision ball screw
|
- High resolution non-contact optical incremental
- encoder (dual loop mode)
|
- Bidirectional repeatability: ±0.5 µm (0.45µm RMS)
|
- Maximum velocity: 50 mm/s
|
- Maximum Acceleration: 250 mm/s2
|
- Ultra high precision linear guide with recirculating balls
|
|
|
- Cables Can be customized for different OEM electronics
|
- Long life performance guaranteed
|
- Easy integration with metric/imperial opto-mechanical systems
|
- Default <15arcsec orthogonality
|
- Can be applied to applications like:
- microscopy, metrology laser cutting, scribing, drilling, marking
|
- Solid Integrated Planar Design available with or w/o aperture
|
- All measurement reports are included by default!
|
