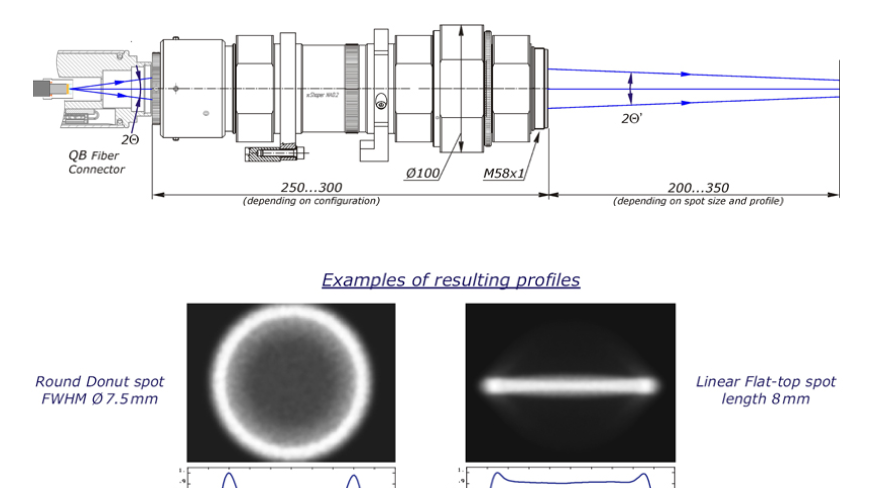

πShaper NA 0.1 / 0.2

• combines collimating and focusing optics,
• is optimized to operate with multimode high power fiber-coupled diode lasers in 910-980 nm and solid state-lasers in 1050-1080 nm spectral bands,
• to be connected directly to fiber,
• converts with near 100% efficiency a divergent Gaussian-like beam into a beam with Donut or Flat-top intensity profile,
• provides round or linear spots depending on optical design.

Applications:

• Welding
• Cladding
• Brazing
• Hardening
• Technologies where Flat-top or Donut spot required
